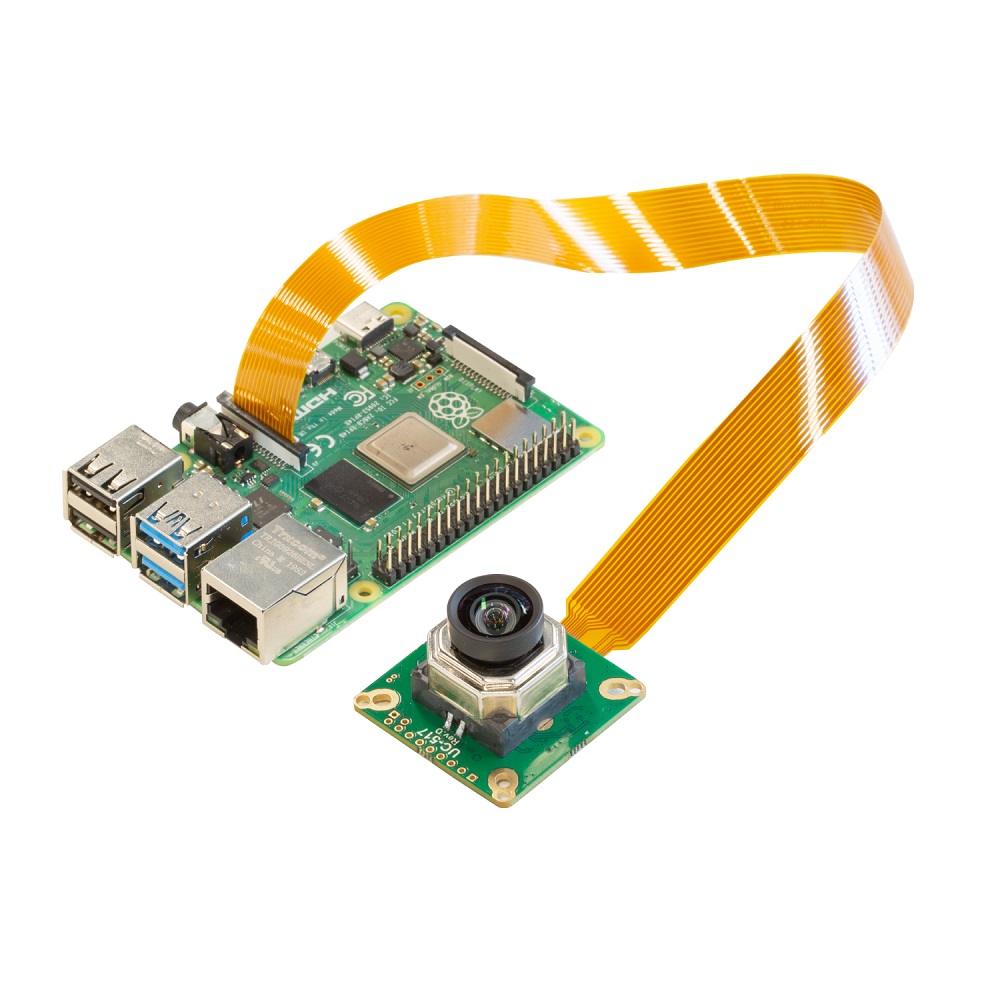

Name: Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi
SKU: 4220
Availability: InStock

This Arducam IMX477 High-Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide.

Download link:

To use this camera, it is necessary to do hardware and software setup. To do both, please follow the instructions given in the link .

Package Includes:

1 Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi with lens

1 300mm 15pin-22pin flex ribbon cable for Raspberry Pi normal variants (Model As and Bs)

1 300mm 22pin-22pin flex ribbon cable for Raspberry Pi Zero and Compute Module

Image Sensor	Image Sensor Format: Type 1/2.3, Pixel Size: 1.55 m x 1.55 m, Sensor Model: IMX477, Sensor resolution: 4056 x 3040 pixels, 12.3MP, Shutter Type: Rolling shutter
Lens Assembly	Model No: M23390H08 Optical Format: 1/2.3 Focal Length: 3.9mm Aperture: F2.8 Field of View (FOV): 75 (H) on Raspberry Pi High-Quality Camera, 50(H) on Raspberry Pi V1/V2 Camera Mount: M12 mount Back Focal Length: 4.49mm MOD: 0.3m Dimension: 1418.67mm Weight: 5g Focus Distance: 80mm to infinity
Camera Board	Board Size: 38mm38mm Hole Pitch: Compatible with 29mm, 30mm, 34mm
Shipping Weight	0.03 kg
Shipping Dimensions	5 5 4 cm
