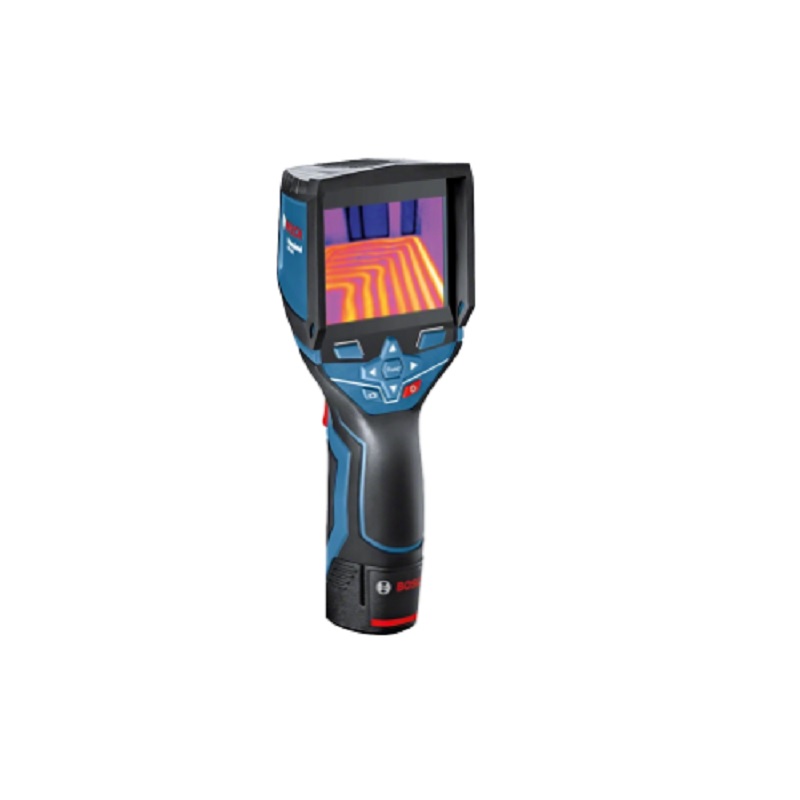

BOSCH GTC 400 C -Thermal Camera
₹57,096.00
The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
The thermal camera GTC 400 C Professional measures and visualizes temperature differences in seconds and easily records the results. The Bosch Thermal App documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and precise localization of temperature differences. Its dual power system makes a 12 V LI-ION battery or standard alkaline battery suitable for power supplies.
Features:
- Fast exchange of data and easy documentation of thermal images with the Bosch Thermal App
- Picture-in-picture technology overlays thermal and real images for easy-to-see localization of the measurement
- The flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
- Easy to use
- Low power consumptions
Packages Include:
1 x BOSCH GTC 400 C -Thermal Camera
Model Type: | GTC 400 C |
---|---|
Measuring application | Thermal image |
Battery Voltage (V) | 12 |
Measurement Range: | -10 C to +400 C, IR Mesurement Accuracy: +/- 3.0 C* (*plus use-dependent deviation) |
Accuracy: | +/-3C |
Data Transfer Rate | MicroUSB, Wi-Fi |
Thermal Sensitivity/NETD | <50 mK |
Resolution: | 0.1 C |
Size of IR sensor | 160120 px |
No. of Measuring Points | 19,200 |
Field of View (FOV): | 5343 |
Power supply and runtime | 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V |
Frame buffer | 500 no. of images |
Memory type: | Internal memory |
File format of image | .jpg |
Dust and splash protection | IP 53 |
Size of display | 3,5″ |
Operating Temperature (C): | -10 45 C |
Weight (kg): | 0.54 |
Storage Temperature (C): | -20 70 C |
Focus distance, minimum | 0.3 m |
