CNC1310 Metal Engraving Cutting PVC PCB Aluminum Copper CNC Router Machine Kit

This is CNC1310 Metal Engraving Cutting PVC PCB Aluminum Copper CNC Router Machine Kit. The CNC 1310 is equipped with a spindle motor that holds various cutting and engraving tools. The spindles power and speed can vary depending on the specific model. It can accommodate different types of cutting tools, such as end mills, engraving bits, and drills, enabling a wide range of machining operations.

Applications:

1. Metals like aluminum and copper (for engraving, milling, or drilling).
2. PVC (Polyvinyl Chloride) for shaping and cutting.
3. PCBs (Printed Circuit Boards) for creating custom circuit designs.
4. Wood, plastics, acrylics, and other non-metal materials.
5. Its commonly used for prototyping, DIY projects, small-scale manufacturing, and hobbyist applications.

Note: This machine is NOT preassembled. The assembly and installation instructions are given in the Manual with the product packaging.

Features:

1. Spindle drive chip: MOSFET, max. 60V (recommended within 48V, current: within 10A)
2. Spindle PWM speed: Support
3. Can support two motors on y axis
4. Can support 2 pins or 3 pins module
5. Support port: Support for using offline control module
6. Support for connecting toolsetter;
7. Spindle with cutter especially for engraving: copper, aluminium, wood, plastic, PCB, acrylic, pvc, plywood, etc.
8. Module engraving suitable for: wood, plastic, leather, bone, stone, paper, shell, etc.
9. Connection: USB (USB-CH340)
10. Input voltage: 12-24V (DC voltage), recommended input voltage 24V 5A
11. Power interface: 5.5-2.5mm DC interface
12. Working Range: 126mm*88mm*38mm
13. 287mm*219mm*200mm machine dimension
14. Machine Material: Aluminum+Profile
15. Spindle: 775 Spindle(12-36V), (8000r/min, if 24V)
16. Stepper Motor: 2-Phase 4-Wire Stepper Motors (1.3A 0.25N.m)
17. Lead Screw: T8 Lead Screw
18. Applicable: Material(Spindle) copper, aluminum and other soft metal plastic, wood, acrylic, pvc, pcb, etc
19. Standard Package: All parts of this machine for assembly, spare tools

Package Includes:

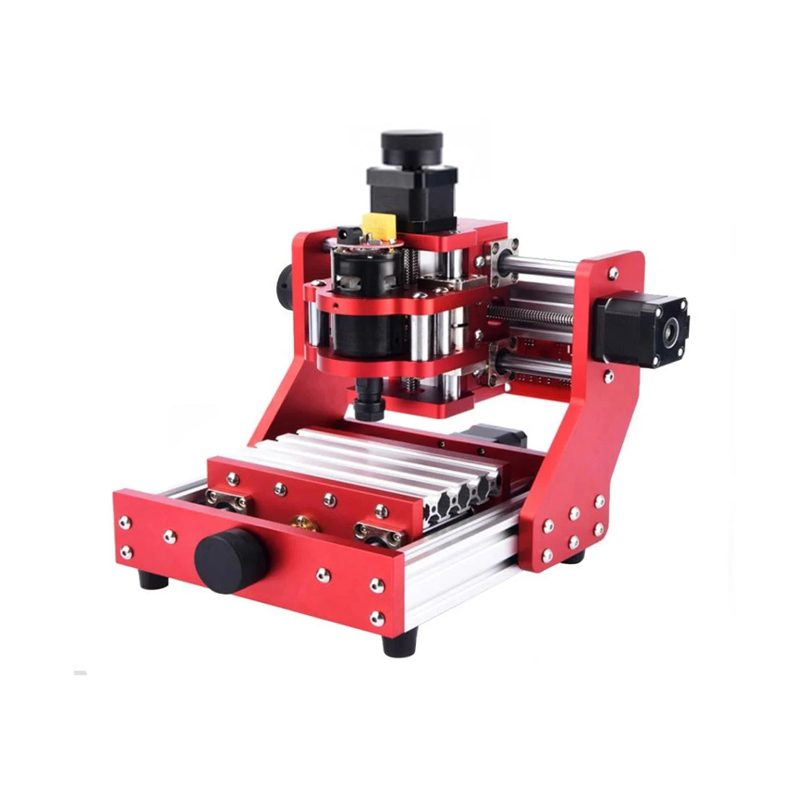

1 x CNC1310 Metal Engraving Cutting PVC PCB Aluminum Copper CNC Router Machine Kit with Accessories (as shown in image)
