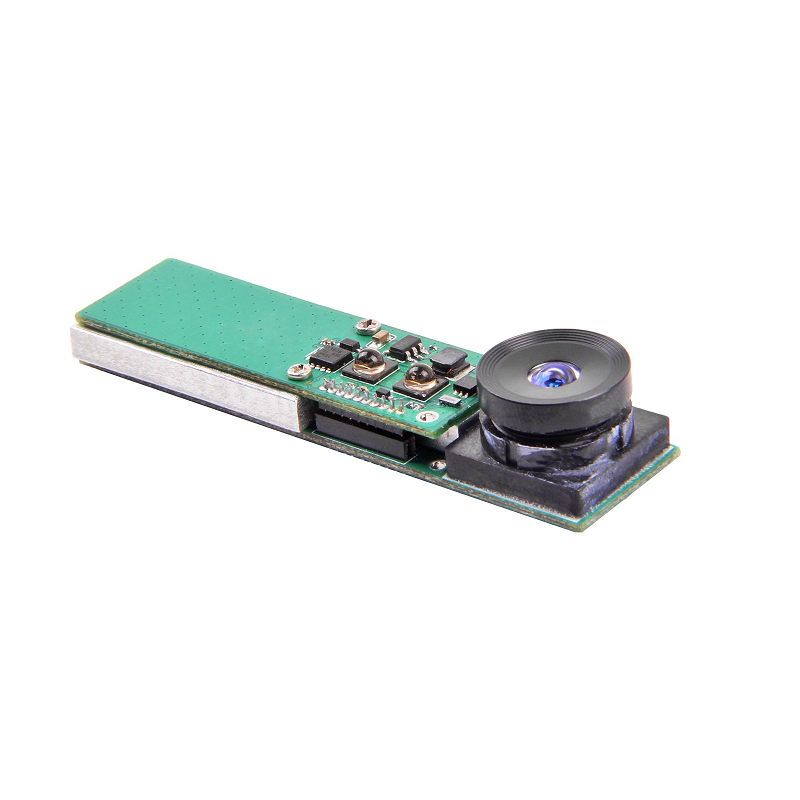

DepthEye 3D Visual TOF Depth Camera
₹11,241.00
This is an all-new 3D Visual Time of Flight camera from Seeed Studio. The camera is based on OPT8320 3D Time of Flight Sensor. The sensor is a part of the TI 3D ToF image sensor family. The device is a high-performance, highly-integrated, complete system-on-chip for array depth-sensing consisting of a versatile timing generator.
Applications:
- Gesture Recognition
- General Robot Navigation and Localization
- Environment Scanning and 3D Re-Modeling
- Service Robot or Industrial Robot Working for Long Hours
- Home Service /Clean Robot Navigation and Localization
- General Simultaneous Localization and Mapping (SLAM)
- Smart Toys Localization and Obstacle Avoidance
Features:
- Based on TI OPT8320 Sensor
- Small in Size
- Provides Resolution up to 80*60
- 2.850nm Band Infrared LED
- USB 2.0 Interface
- FOV of 90*75*59 (D*H*V)
Package Includes:
1 x DepthEye 3D Visual TOF Depth Camera
1 x Micro USB Cable
| Sensor | TI OPT8320 |
|---|---|
| Range (m) | 0.2 ~ 2 |
| Accuracy | < 1.5% |
| Resolution | 80 x 60 |
| Operating Temperature (C) | 0 to 70 |
| Lense Viewing Angle (FOV) | 75.3 x 59.7 x 90 |
| Interface | USB 2.0 Micro USB |
| Length (mm): | 60 |
| Width (mm): | 17 |
| Height (mm): | 12 |
| Weight (g): | 20 |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 7 4 2 cm |
