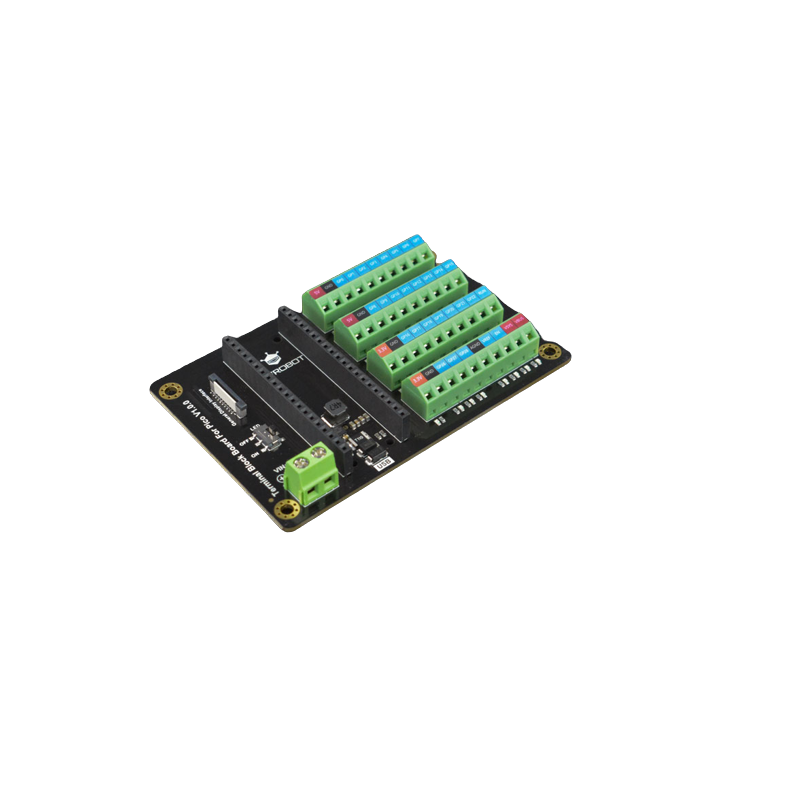

DFRobot Terminal Block Board for Raspberry Pi Pico
Quick Overview
Loading product description...
₹2,071.00 ₹1,449.70
Same Day Shipping
If Ordered within 4 Hours and 54 Minutes
Technical Support & Easy Returns
This raspberry pie pico terminal expansion board is just right for makers who love using terminal blocks for wiring up their projects!
The board has all pins of Pico broken out into terminal blocks and provides users with additional GDI, 5V output, and 7-24 power input. Each port is labeled with clear silkscreens. All terminal blocks (except GND) have LED indicators for status indicating, which can be turned off using the onboard switch when not required.
Features:
- Terminal blocks, make connections more stable and reliable
- All pins of the main board are broken out
- External Voltage Input: 7-24V
- Clear color silkscreens
- GDI for connecting the display
- Terminal block status indicator
- Terminal block status indicator switch
Package Includes:
1 x Terminal Block Board for Raspberry Pi Pico
| Screen Interface | GDI |
|---|---|
| GPIO port | 27 |
| GND port | 5 |
| 5V Port | 2 |
| 3.3V Port | 2 |
| Port LED Indicator | 35 |
| Port LED Indicator Color | blue |
| Default ON Port Indicator | 3.3V, 5V, VSYS, VBUS, VREF |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 8 8 1 cm |
