(Discontinued) Official Arduino UNO R4 WiFi ABX00087
₹1,767.00

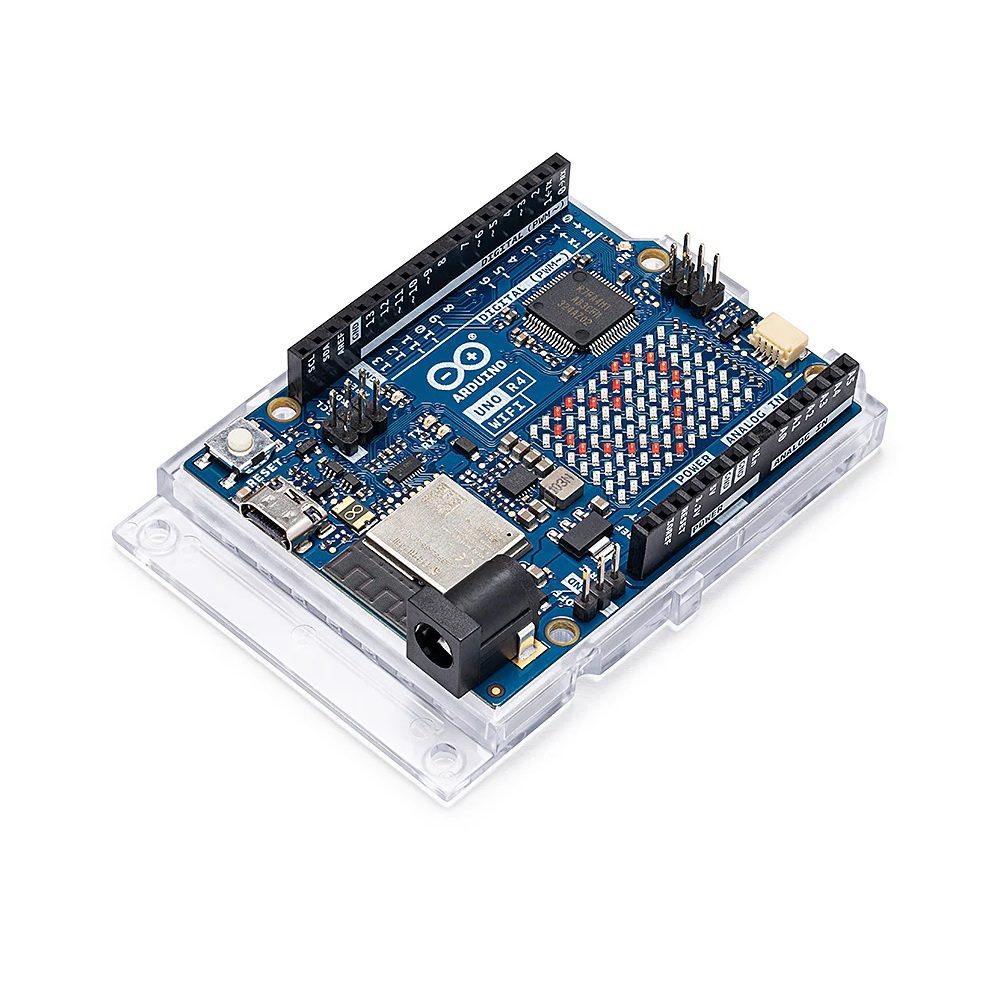

Introducing the latest addition to the Official Arduino lineup, the Official Arduino UNO R4 WiFi board. This new version of the UNO board brings significant advancements, making it a powerful tool for your projects. The standout feature of the UNO R4 WiFi is the integration of an ESP32-S3 Wi-Fi module (ESP32-S3-MINI-1-N8) which equip the UNO with Inbuilt Bluetooth and WiFi.
The UNO R4 WiFi is part of the first UNO series of 32-bit development boards, being previously based on 8-bit AVR microcontrollers. There are thousands of guides, tutorials, and books written about the UNO board, where the UNO R4
WiFi continues its legacy.
Pin Configuration:
Powered by a 48 MHz Arm Cortex-M4 microprocessor, the board utilizes a RA4M1 series microcontroller from Renesas (R7FA4M1AB3CFM#AA0). With enhanced memory capabilities, the UNO R4 WiFi boasts 256 kB flash, 32 kB SRAM, and 8 kB of EEPROM. Additionally, a logic level translator (TXB0108DQSR) facilitates seamless communication between the RA4M1 and ESP32-S3 modules, ensuring optimal performance. Upgrade to the Official Arduino UNO R4 WiFi and experience the next level of Official Arduino innovation.
Use your MKR board on Arduinos IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
Features:
- The UNO R4 is now a 32-bit Microcontroller board, being previously based on 8-bit AVR
- The board features 14 digital I/O ports, 6 analog channels
- Dedicated pins for I2C, SPI and UART connections.
- It has a significantly larger memory:
- 8 times more flash memory (256 kB)
- 16 times more SRAM (32 kB).
- Fastest 48 MHz clock Speed. It is 3x faster than its predecessors.
- Onboard ESP32-S3 module for Wi-Fi & Bluetooth connectivity,
- Onboard 128 LED matrix
- Making one of the most visually unique Official Arduino boards to date.
- The LED matrix is fully programmable, where you can load anything from still frames to custom animations.
Note: For Detailed technical specifications go through the Datasheet in the attachment Section
Package Includes:
1 x Official Arduino UNO R4 WiFi ABX00087
| Item Type: | Development Board |
|---|---|
| Model Type: | Uno |
| Model No.: | ABX00087 |
| Model Name | Arduino UNO R4 WiFi |
| Overview | 48 MHz Arm Cortex-M4 microprocessor with a floating point unit (FPU) 5 V operating voltage Real-time Clock (RTC) Memory Protection Unit (MPU) Digital-to-analog Converter (DAC) |
| Memory: | 256 kB Flash Memory 32 kB SRAM 8 kB Data Memory (EEPROM) |
| Peripheral | Capacitive Touch Sensing Unit (CTSU) USB 2.0 Full-Speed Module (USBFS) 14-bit ADC Up to 12-bit DAC Operational Amplifier (OPAMP) |
| Power Rating: | Operating voltage for RA4M1 is 5 V Recommended input voltage (VIN) is 6-24 V Barrel jack connected to VIN pin (6-24 V) Power via USB-C at 5 V |
| Communication | 1x UART (pin D0, D1) 1x SPI (pin D10-D13, ICSP header) 1x IC (pin A4, A5, SDA, SCL) 1x CAN (pin D4, D5, external transceiver is required) |
| WiFi (Y/N) | Wi-Fi support with 802.11 b/g/n standard (Wi-Fi 4) Bit rate at up to 150 Mbps 2.4 GHz band |
| Bluetooth Version: | Bluetooth 5 |
| GTIN | 7630049204591 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 10 8 4 cm |
