DS1001-01-20BT1NSF6S-JKB-CONNFLY-20 Pin 2.54mm IC Socket DIP Type
Quick Overview
Loading product description...
₹33.00 ₹23.10
Same Day Shipping
If Ordered within 4 Hours and 54 Minutes
Technical Support & Easy Returns

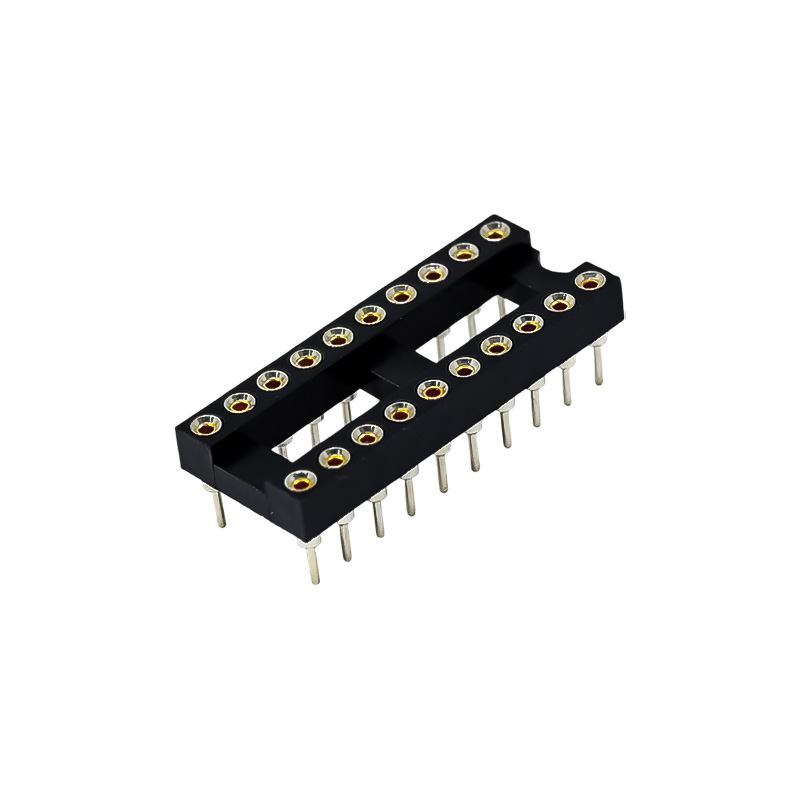

DS1001-01-20BT1NSF6S-JKB-CONNFLY-20 Pin 2.54mm IC Socket DIP Type
Note: Images for reference only.
Specifications:
Product series: DS1001-01
pitch: 2.54mm
product description IC Socket: Dip Type
products type: board to board
mounting type: V/T
soldering temperature: 2505
rated currency: 3A
rated voltage: 30V
contact resistance: 30m maximum
insulation resistance: 1000M minimum
withstand voltage: 500V AC 1minitue
operation temperature: (-40~105)
For detailed specifications, please refer to datasheet in Attachments.
Package Includes:
1 x DS1001-01-20BT1NSF6S-JKB-CONNFLY-20 Pin 2.54mm IC Socket DIP Type
| Manufacturer: | Connfly |
|---|---|
| Pitch Spacing (mm): | 2.54 |
| No. of Pins: | 20 |
| Operating Temperature (C): | -40 to 105 |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 1 1 cm |
