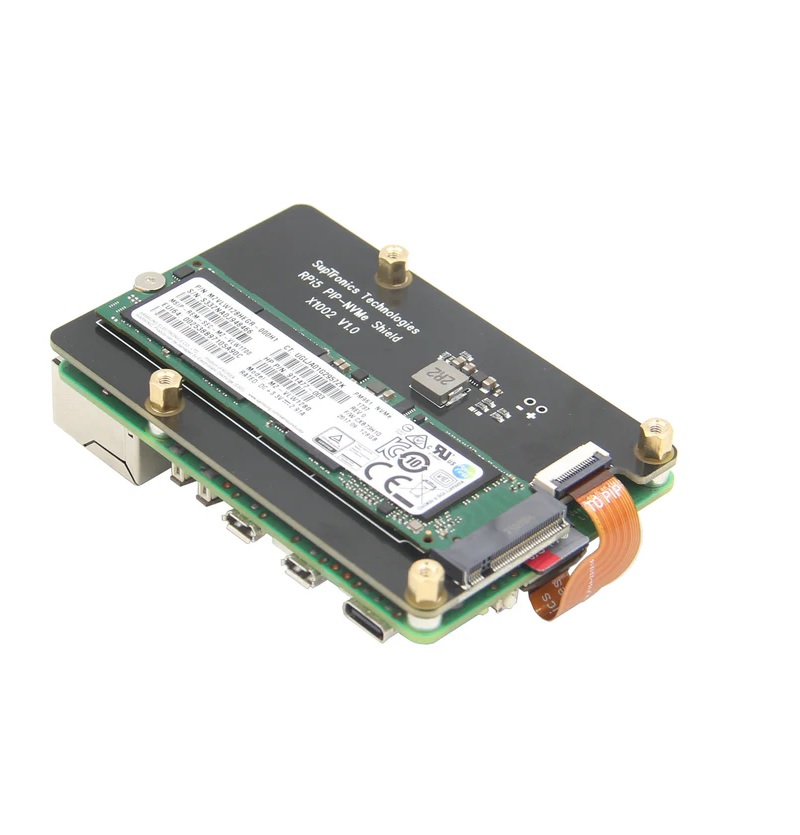

Geekworm X1002 PCIe to M.2 2280 NVMe SSD Bottom for Raspberry Pi 5

The X1002 V1.0 shield is a NVMe M2 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIe interface of the Raspberry Pi 5 to utilise the NVME M2 SSD for fast data transfers and ultra-fast booting.

Notes:

1. Compatible with M.2 NVMe SSDs
2. Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
3. Older NVMe drives with less efficient flash media may not perform as well as newer drives
4. New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry
5. Pi before they will be accessed in the Explorer.

Features:

1. Full compatible with other HAT shield;
2. Customized FPC cable for easy use of TF card
3. Supports installation of official active coolers for heat dissipation;
4. With ACT LED Indicator;
5. Supports 2230/2242/2260/2280 NVMe M2 Key-M SSD.
6. Can power the X1002 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)
7. PS: Maximum current for PCIe wire is 1A, and voltage is 5V.

Package Includes:

1 x X1002 V1.0 NVMe SSD Bottom Shield
1 x PCIe FFC cable
4 x M2.5x5mm F/F Spacers
4 x M2.5x10mm Screws
1 x M2x4mm Screws (to fix MVME M2 SSD)
