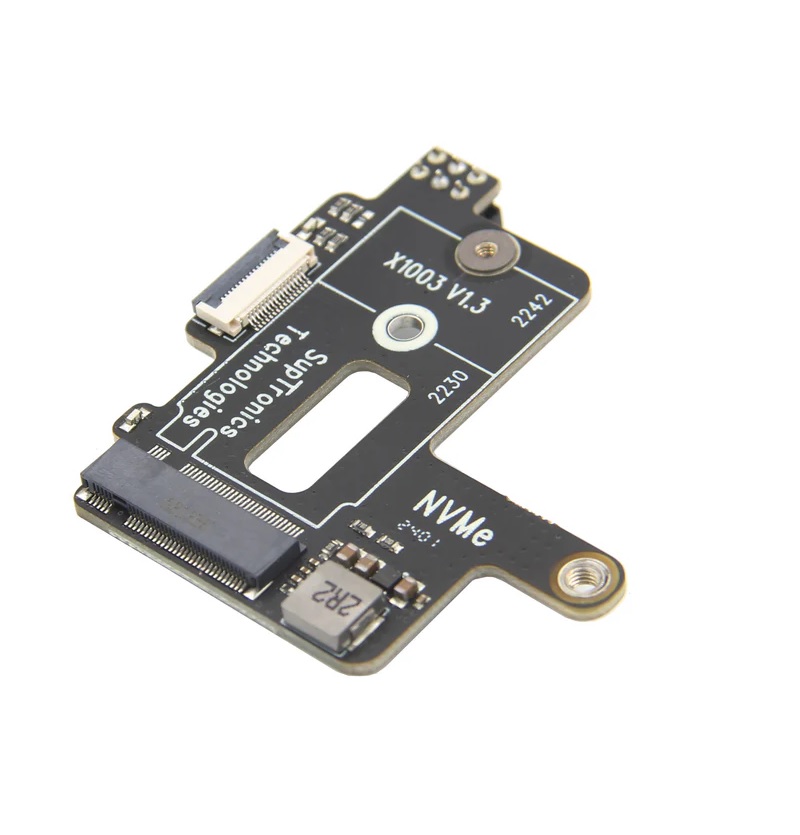

Geekworm X1003 PCIe to M.2 Key-M NVMe SSD PIP TOP for Raspberry Pi 5

The X1003 is a PCIE to NVME expansion board designed to support Raspberry Pi 5 Active Cooler and the official Raspberry Pi 5 ABS case, it is very compact in size and only supports NVME ssds of the 2230/2242 specification, in order to install the X1003 you will need to remove the fan layer on the top of the enclosure.

Notes:

1. Compatible with M.2 NVMe SSDs
2. Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
3. Older NVMe drives with less efficient flash media may not perform as well as newer drives
4. New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry
5. Pi before they will be accessed in the Explorer.

Features:

1. Compatible with Raspberry Pi 5 Active Cooler and Raspberry pi 5 official case ;
2. FFC is only 22mm length.
3. Supports installation of official active coolers also;
4. With M.2 disk activity (ACT) LED; On: Power OK/Standby,Flashing: Reading/Writing
5. Supports 2230/2242 NVME M2 SSD only.
6. Supports additional GPIO power supply in addition to FPC power supply
7. PS: The X1003 hardware has no limit on NVME SSD capacity, which is dependent on the Raspberry Pi OS

Package Includes:

1 x X1003 V1.3 NVMe SSD Shield
1 x PCIe FFC cable(22mm length)
1 x M2x13mm screw (fix x1003 shield to official Active cooler)
1 x M2x4mm Screws (to fix MVME M2 SSD)
