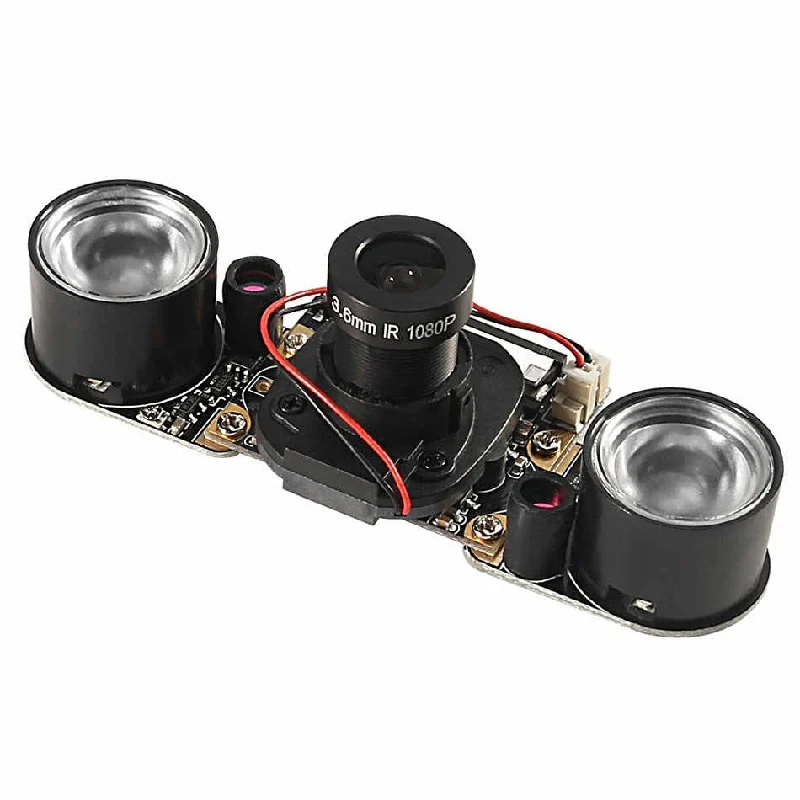

IR-Cut Camera 5 Mp OV5647 Manually Switch Day And Night Mode Module Raspberry Pi 3 Camera

This is IR-Cut Camera 5 Mp OV5647 Manually Switch Day And Night Mode Module Raspberry Pi 3 Camera. It attaches to Raspberry Pi by way of one of the small sockets on the board upper surface. This uses the dedicated Raspberry Pis onboard  CSI interface, designed especially for interfacing with cameras.

The camera supports night vision. It is compatible with all revisions of the Pi. Powered with a 5-megapixel OV5647 sensor, its best resolution is 1080p.

The Externally attachable IR LED  that helps the night vision function. The Mounting Holes Provides 3.3V power output Supports connecting infrared LED and/or fill flash LED. An adjustable resistor is provided on it to control the ambient light threshold of toggling the infrared LED when ambient light is lower than the threshold value, the infrared LED is on, vice versa. Onboard screw holes are used for both attachment and power supply.

It connects to Raspberry Pi by way of a short ribbon cable. The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p 30, 720p 60 and 640x480p 60/90 video.

The camera is supported in the latest version of Raspbian, Raspberry Pis preferred operating system.

We also have Automatic Day/Night Mode switching camera with same specifications, check it out here.

Note : Product is available in disassemble and assemble form we will according stock availability .

Features:

1. Using IR-CUT filter, it can eliminate color distortion in the daylight
2. Comes with infrared LED, supports night vision
3. 5-megapixel OV5647 sensor
4. Can Attach IR LEDs if Night Vision mode is required
5. The screw hole on the camera is used to both fix the infrared lights and through the power for the lights.

Package Includes:

1 x OV5647 5MP 1080P IR-Cut Camera

1 x 15-pin FFC Ribbon cable Strip (opposite sides contact)
