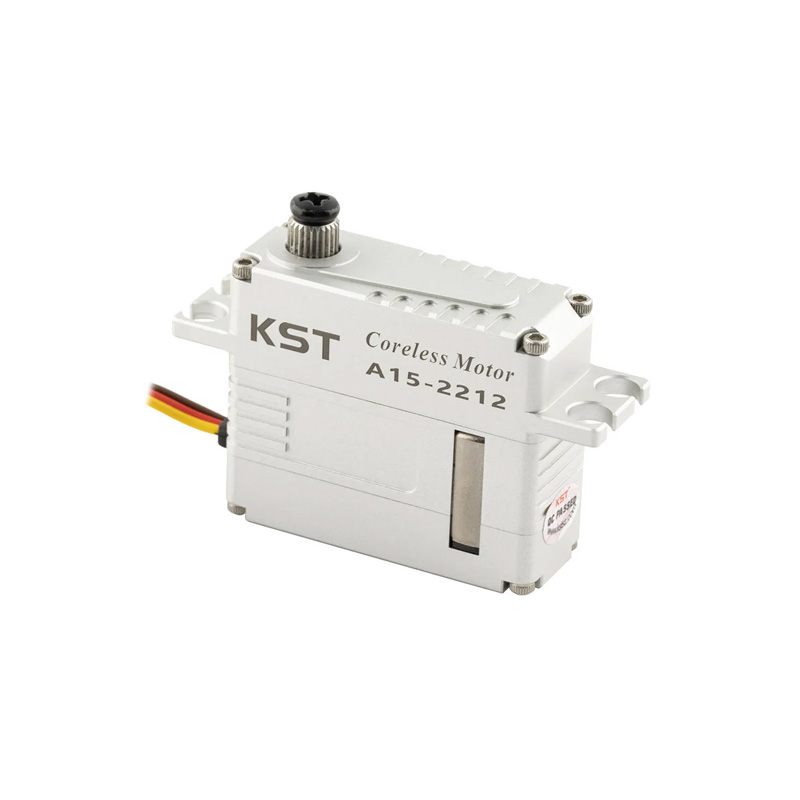

KST servo A15-2212
₹8,507.00
The KST servo A15-2212 has a thin thickness of 15mm with extremely high positioning force and good positioning time. It can be loaded up to 25Kgf.cm. The digital servo has precise, backlash-free carbide and phosphor bronze gearing and a high level of reset accuracy. The high-quality all-aluminum housing can be mounted precisely and ensures good heat dissipation.
Features:
- High Torque: 25 kgfcm at 8.4V, ideal for large control surfaces.
- Fast Speed: 0.11 sec/60 at 8.4V for quick, responsive movement.
- Compact Design: Thin 15mm profile for tight installations.
- Backlash-Free Gears: Phosphor bronze and hardened steel for smooth operation.
- Coreless Motor: High efficiency and reliable performance.
- CNC Aluminum Case: Durable with excellent heat dissipation..
Package Includes:
1 x A15-2212 HV Digital Servo
5 x Plastic Servo Horns
1 x Servo Horn Screw
4 x Mounting Screws
4 x Rubber Grommets
4 x Eyelets
| Motor Type: | Coreless DC Motor |
|---|---|
| Model Name | KST A15-2212 HV Servo |
| Torque: | 25 kgfcm at 8.4V |
| Speed | 0.11 sec/60 at 8.4V |
| Voltage Range (V) | DC3.8V-8.4V |
| No. of Bearings | Dual ball bearings |
| Net Weight | 50g10% |
| Dimensions (L x W x H) mm | 40.5mm x 15mm x 34.1mm |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 4 24 cm |
