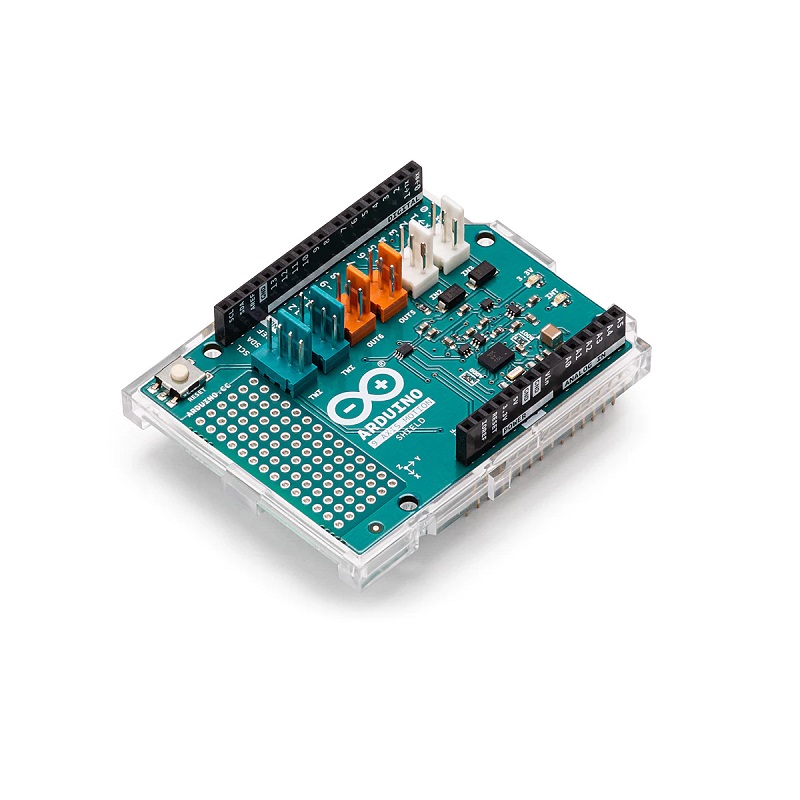

Official Arduino 9 Axis Motion Shield A000070
₹2,434.00
The Official Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor from Bosch Sensortec GmbH which integrates a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of 2000 degrees per second and a triaxial geomagnetic sensor with a 32-bit microcontroller running the BSX3.0 FusionLib software.
The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes.
Features:
- Bosch Sensortec GmbH which integrates a triaxial 14-bit accelerometer
- A triaxial 16-bit gyroscope
- Triaxial geomagnetic sensor with a 32-bit microcontroller
Package Includes:
1 x Official Arduino 9 Axis Motion Shield A000070
| Item Type: | Shield |
|---|---|
| Model Type: | Sensor Shield Kit |
| Model No.: | A000070 |
| Compatibility: | Arduino Uno |
| Communication | I2C |
| Gyroscope | Triaxial 14-bit |
| Accelerometer | Triaxial 16-bit |
| Geomagnetic | Triaxial 32-bit |
| Operating Voltage (VDC): | 5V |
| Current Rating: | (normal mode), 12.3 mA |
| Shipping Weight | 0.042 kg |
| Shipping Dimensions | 8.5 6 4 cm |
