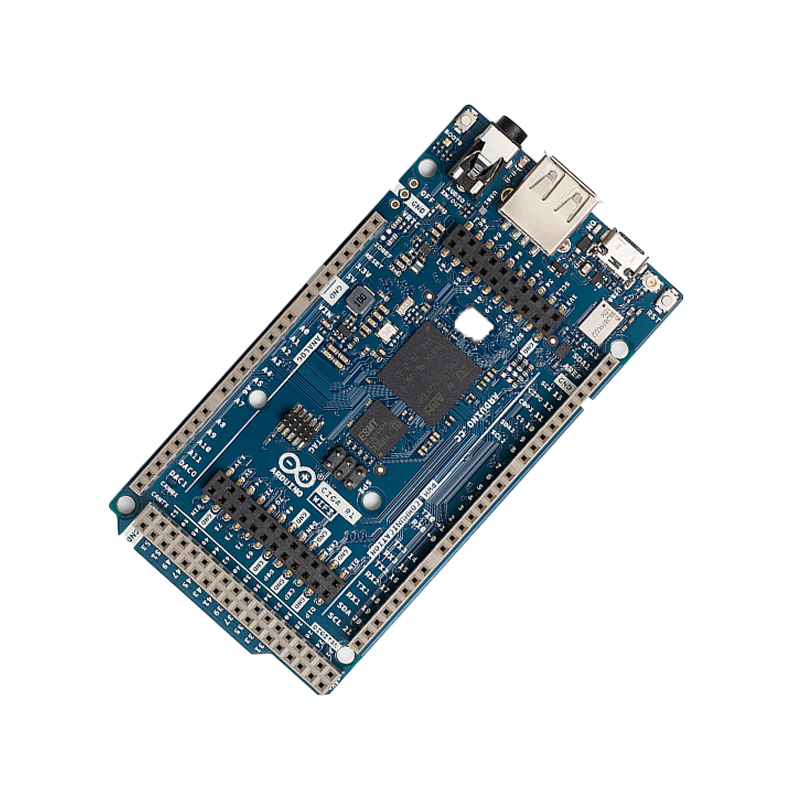

Official Arduino GIGA Display Bundle Module AKX00075

The Arduino GIGA Display Bundle (AKX00075) combines the GIGA R1 WiFis robust STM32H7 dual-core performance with seamless wireless connectivity via Wi-Fi and Bluetooth. Designed for advanced projects like 3D printing, audio processing, and edge ML, it features 76 I/Os, 14 analog inputs, 2 DACs, 8 MB SDRAM, and 16 MB NOR Flash. Arduino GIGA Display Bundle bundle enables real-time data acquisition, IoT connectivity via Arduino Cloud, and multimedia capabilities with its onboard audio interface.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Dual-Core Processor: Arm Cortex-M7 at 480 MHz & Cortex-M4 at 240 MHz
2. Wireless Connectivity: Murata module for Wi-Fi(65 Mbps) & Bluetooth 5.X
3. High I/O Count: 76 digital, 14 analog inputs, 2 DACs
4. Memory Expansion: 2 MB internal flash, 16 MB NOR flash, 8 MB SDRAM
5. Audio Support: 3.5 mm jack with DAC stereo output and mic input
6. Cloud Integration: Supports Arduino IoT Cloud for remote data, automation, and monitoring

Package Includes:

1 x Official Arduino GIGA Display Bundle AKX00075
