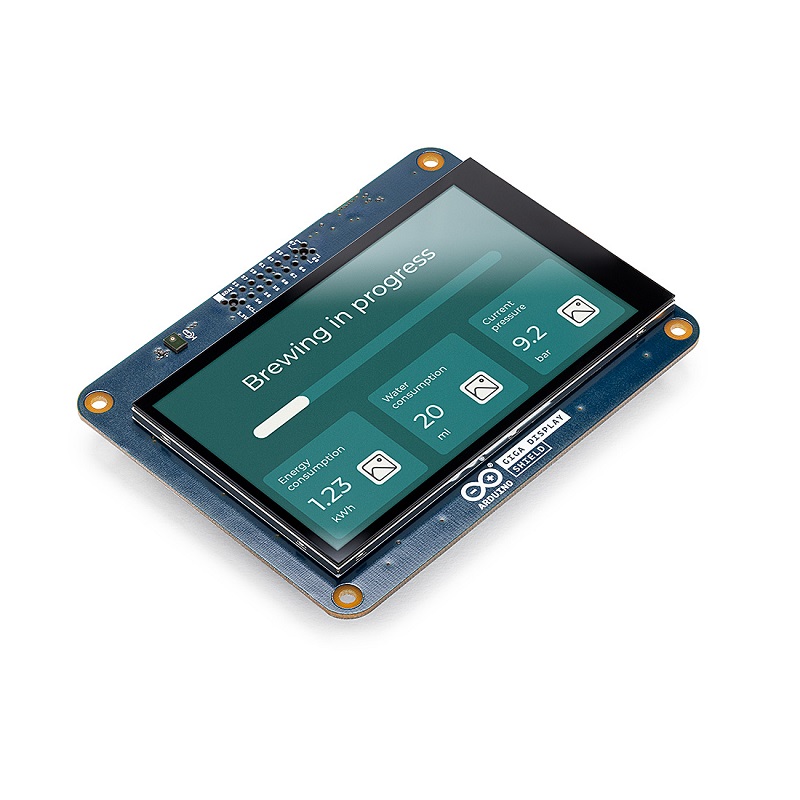

Official Arduino GIGA Display Shield ASX00039
₹5,512.00
The Official Arduino GIGA Display Shield (from now on referred to as GIGA Display Shield) is an easy way to add a touchscreen
display with orientation detection to your Official Arduino GIGA R1 WiFi (from now on referred to as GIGA R1 WiFi) board. The GIGA Display Shield provides easy cross-form factor support for an external touch display, together with several useful peripherals.
Human-Machine Interface Systems: The GIGA Display Shield can be paired together with a GIGA R1 WiFi board for rapid development of a Human-Machine Interface system. The included gyroscope allows for easy orientation detection to adjust the visual element orientation.
Interaction Design Prototyping: Quickly explore novel interaction design concepts and develop new ways to communicate with technology, including social robots that respond to sound.
Voice Assistant Use the included microphone, together with the edge computing power of the GIGA R1 WiFi for voice automation with visual feedback
Note: The GIGA Display Shield requires a GIGA R1 WiFi board to function. It has no microcontroller and cannot be
programmed independently
Features:
- Display: KD040WVFID026-01-C025A 3.97 TFT Display
- Resolution: 480800 pixels
- Color Depth: 16.7 million colors
- Pixel Size: 0.108 mm
- Touch Sensor: Capacitive with 5-point and gesture support
- Backlight: Edge LED backlight
- IMU (Inertial Measurement Unit): 16-bit BMI270 6-axis IMU
- Accelerometer: 3-axis with 2g/4g/8g/16g range
- Gyroscope: 3-axis with 125dps/250dps/500dps/1000dps/2000dps range
- SMLP34RGB2W3 RGB LED
- Acoustic Overload Point (AOP): 122.5 dbSPL
- Signal-to-Noise Ratio: 64 dB
- Sensitivity: 26 dBFS 3 dB sensitivity
- Display Driver: IS31FL3197-QFLS2-TR Driver with integrated charge pump
- Connector: GIGA Connector
- Camera Connector: 2.54 mm Camera Connector
Package Includes:
1 x Official Arduino GIGA Display Shield ASX00039
| Item Type: | Shield |
|---|---|
| Model Type: | Display Shield |
| Model No.: | ASX00039 |
| Display: | KD040WVFID026-01-C025A 3.97″ TFT Display |
| Display Resolution: | 480800 resolution |
| Display Color | 16.7 million colors |
| Pixel Size | 0.108 mm |
| Touchscreen (Y/N): | Capacitive Touch sensor |
| Supported | 5-point and gesture support |
| IMU | 16 bit BMI270 6-axis IMU (Accelerometer and Gyroscope) |
| Accelerometer | 3-axis accelerometer with 2g/4g/8g/16g range |
| Audio Input | AOP = 122.5 dbSPL 64 dB signal-to-noise ratio , Omnidirectional sensitivity ,26 dBFS 3 dB sensitivity, MP34DT06JTR Digital Microphone |
| Gyro | 3-axis gyroscope with 125dps/250dps/500dps/1000dps/2000dps range |
