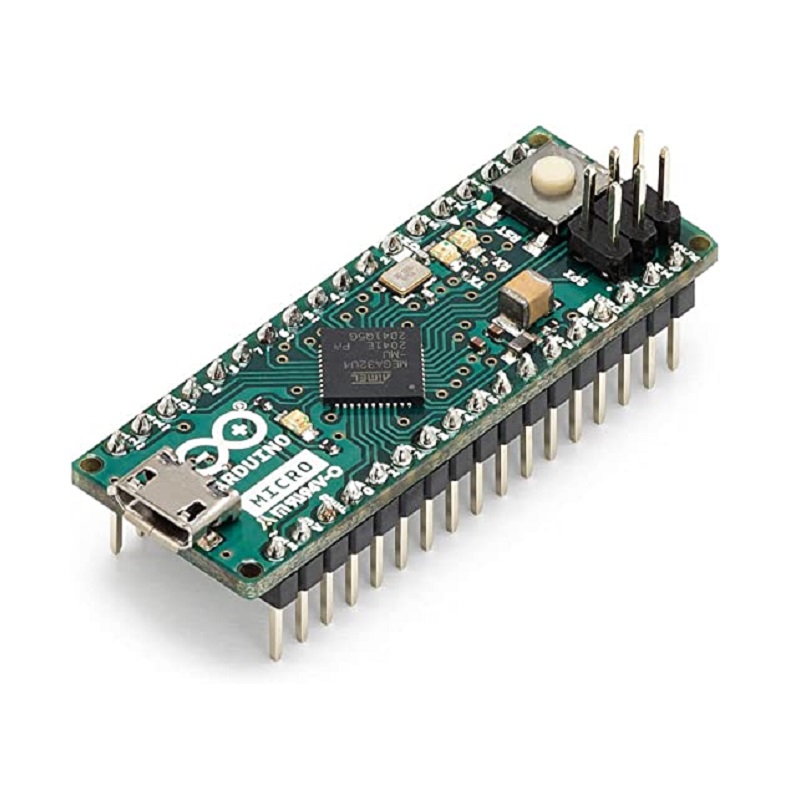

Official Arduino MICRO With Headers A000053
₹1,460.00
The Micro is a microcontroller board based on the ATmega32U4, developed in conjunction with Adafruit. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
The Micro board is similar to the Official Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Note: Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs)
- With a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, a reset button.
- Easy to use
- Easy to install
- Good quality product
Package Includes:
1 x Official Arduino MICRO With Headers A000053
| Item Type: | Development Board, With Header |
|---|---|
| Model Type: | Micro |
| Model No.: | A000053 |
| Operating Voltage (VDC): | 5V |
| Input Voltage (V): | 7-12V |
| Digital I/O Pins | 20 |
| PWM Channels | 7 |
| Analog Input Channels | 12 |
| DC Current per I/O Pin (mA) | 20 mA |
| DC Current for 3.3V Pin (mA) | 50 mA |
| Flash Memory: | 32 KB (ATmega32u4) of which 4 KB used by bootloader |
| SRAM | 2.5 KB (ATmega32u4) |
| EEPROM | 1 KB (ATmega32U4) |
| Clock Speed | 16 MHz |
| Additional Specs.: | 13, LED_BUILTIN |
| Length | 48 mm |
| Width (mm): | 18 mm |
| Weight (g): | 13 g |
| Shipping Weight | 0.024 kg |
| Shipping Dimensions | 8 6 2.5 cm |
