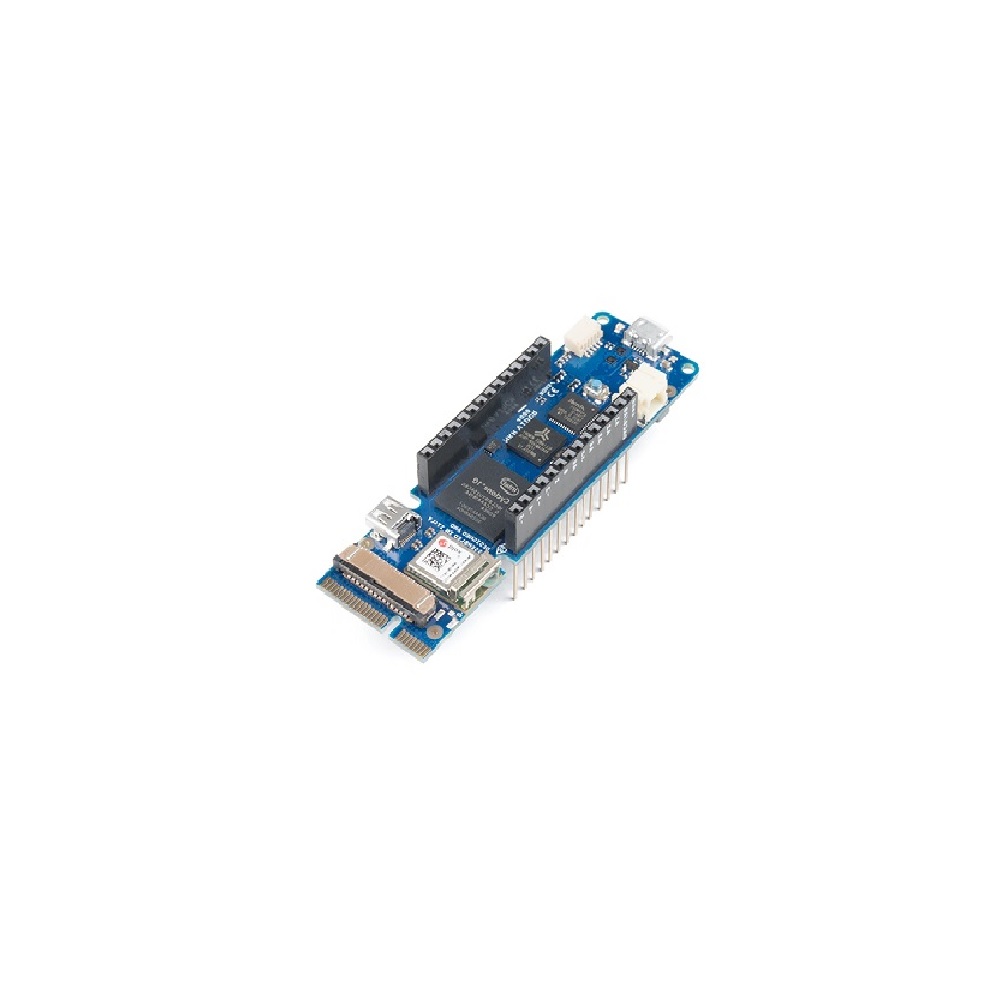

Official Arduino MKR Vidor 4000
Quick Overview
₹9,980.00 ₹7,984.00
The Official Arduino MKR Vidor 4000 brings Arduinos ease of use to the work with the most powerful reprogrammable chips that exist: FPGAs. With Vidor, you can create a board where all pins are PWM signals controlling the speed of motors. You can capture sound in real-time and make a sound effect pedal for your guitar. It is possible to create a real-time computer reading sensor information and sending it to a state-of-the-art monitor or capture video and overlay sensor information on the image that will then later be sent over to a screen. You can connect to the Official Arduino IoT Cloud and control a complex laboratory machine running a large number of motors. You could even prototype your own processors inside the FPGA and have them work in parallel to the other microcontroller on the board. Vidor is a device that invites experimentation, precision, and high-speed computation.
The board comes with 8 MB of SRAM to support the FPGA operations on video and audio. The FPGA code is stored in a 2 MB QSPI Flash chip, of which 1 MB is allocated for user applications. It is possible to perform high-speed DSP operations for audio and video processing. Therefore, the Vidor includes a Micro HDMI connector for audio and video output and a MIPI camera connector for video input. All of the boards pins are driven both by SAMD21 and FPGA while respecting the MKR family format.
Useful Steps:
- Open the Official Arduino IDE. Go to Tools->Boards->Boards Manager. Search and install Official Arduino SAMD boards.
- Go to Tools->Manage Libraries. Search and install WiFiNINA ver. 1.3.0 library.
- Go to File->Examples->WiFiNINA->Scan Networks. Select correct COM port. Compile and upload the program. Check the output in Serial Monitor.
Use your MKR board on Arduinos IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
Features:
- All pins are PWM pins
- MIPI camera connector
- Mini PCI Express port with programmable pins
- Full-Speed USB Device and embedded Host
FPGA Block Specifications:
- FPGA: Intel Cyclone 10CL016
- PCI: Mini PCI Express port with programmable pins
- Camera Connector: MIPI camera connector
- Circuit Operating Voltage: 3.3V
- Digital I/O Pins: 22 headers + 25 Mini PCI Express
- PWM Pins: All Pins
- UART: Up to 7 (depends on FPGA configuration)
- SPI: Up to 7 (depends on FPGA configuration)
- I2C: Up to 7 (depends on FPGA configuration)
- Analog Input Pins: n/a
- Analog Output Pins: n/a
- External Interrupts: n/a
- DC Current per I/O Pin:4 or 8 mA
- Flash Memory:2 MB
- SDRAM: 8 MB
- EEPROM:n/a
- Clock Speed:48 MHz up to 200 MHz
- Video Output: Micro HDMI
Package Includes:
1 x Official Arduino MKR Vidor 4000 ABX00022
Item Type: | MKR Series Board |
---|---|
Model Type: | MKR Vidor |
Model No.: | ABX00022 |
Digital I/O Pins | 8 |
PWM Digital I/O Pins | 13 |
Clock Speed | 32.768 kHz (RTC), 48 MHz |
Flash Memory: | 256 KB (internal) |
SRAM | 32 KB |
DC Current per I/O Pin (mA) | 7 |
Dimensions (L x W x H) mm | 83x25x2 |
Weight (g): | 43 |
Shipping Weight | 0.046 kg |
Shipping Dimensions | 11.5 6 2.5 cm |
