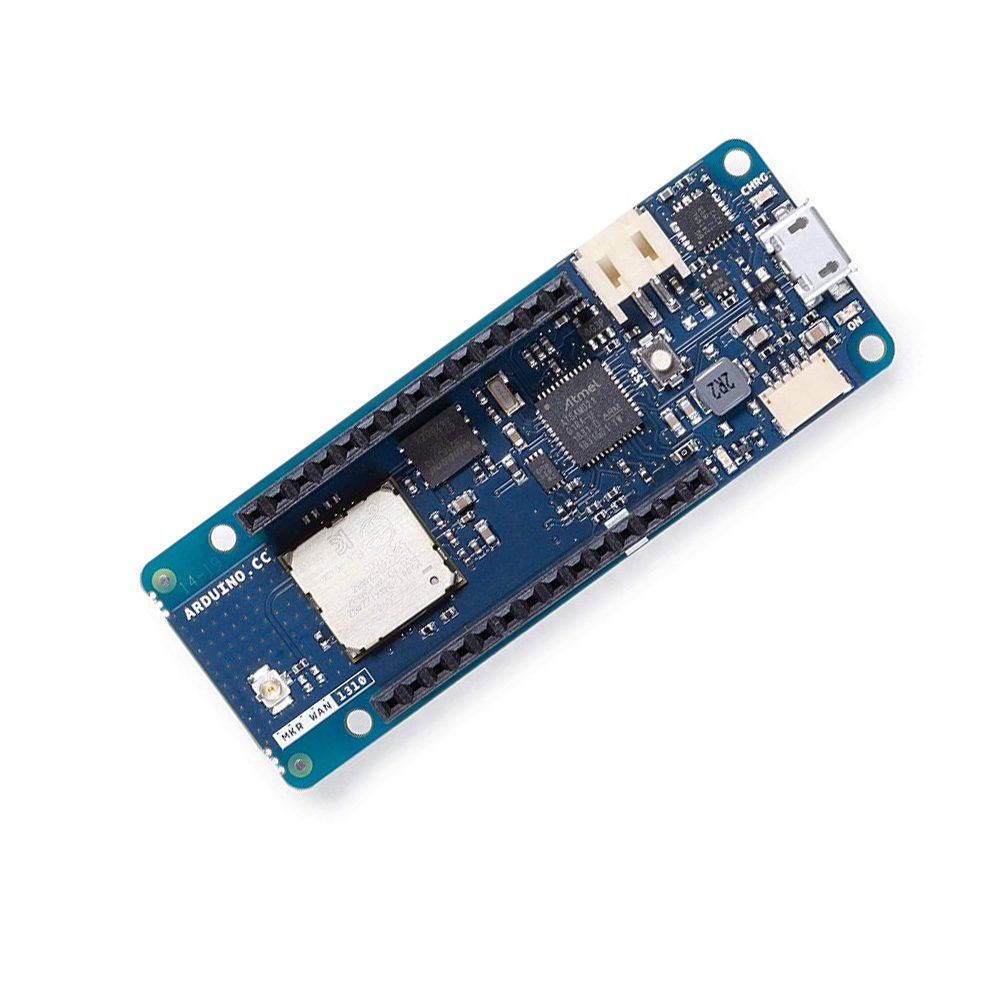

Official Arduino MKR WAN 1310 ABX00029
Quick Overview
₹4,458.00 ₹3,566.40
Official Arduino MKR WAN 1310 provides a practical and cost effective solution to add LoRa connectivity to projects requiring low power. This open source board can connect to the Official Arduino IoT Cloud, your own LoRa network using the Official Arduino LoRa PRO Gateway, existing LoRaWAN infrastructure like The Things Network, or even other boards using the direct connectivity mode.
The MKR WAN 1310 brings LoRa connectivity to your projects. Using the popular Arm Cortex-M0 32-bit SAMD21 processor, it also features the powerful Murata CMWX1ZZABZ module and the ECC508 crypto-chip for security. The board is part of the MKR family, where you can choose from a large variety of shields to build projects out of the box with minimal effort!
Note:
- The microcontroller on the this board runs at 3.3V, which means that you must never apply more than 3.3V to its Digital and Analog pins. Care must be taken when connecting sensors and actuators to assure that this limit of 3.3V is never exceeded. Connecting higher voltage signals, like the 5V commonly used with the other Official Arduino boards, will damage the board. You should remove the black conductive foam from the board pins before usage. If you dont remove it, the board may behave erratically.
- Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Use your MKR board on Arduinos IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
Features:
- LoRaWAN Connectivity: Use LoRaWAN in remote places to send data to nearby gateways connected to the TTS service, which in turn forwards the data to the Official Arduino IoT Cloud.
- The Things Network: Use the LoRa wireless protocol to implement your own networks, or connect to various LoRaWAN networks, such as The Things Network.
- Communication Board-to-board: Set up two Official Arduino MKR WAn 1300 to host a remote LED control. Learn more about board-to-board communication and using LoRa in your projects.
- Good quality product
Package Includes:
1 x Official Arduino MKR WAN 1310 ABX00029
| Item Type: | MKR Series Board |
|---|---|
| Model Type: | MKR WAN |
| Model No.: | ABX00029 |
| Radio | CMWX1ZZABZ |
| Board Power Supply | (USB/VIN) 5V |
| Secure Element | ATECC508 |
| Supported Battery | rechargeable Li-Ion, or Li-Po, 1024 mAh minimum capacity |
| Operating Voltage (V): | 3.3V |
| Digital I/O Pins | 8 |
| PWM Pins | 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4) |
| UART | 1 |
| SPI | 1 |
| I2C: | 1 |
| Analog Input Pins | 7 (ADC 8/10/12 bit) |
| Analog Output Pins | 1 (DAC 10 bit) |
| External Interrupt: | 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2) |
| DC Current per I/O Pin (mA) | 7 mA |
| CPU Flash Memory | 256 KB (internal) |
| QSPI Flash Memory | 2MByte (external) |
| SRAM | 32 KB |
| EEPROM | NO |
| Clock Speed | 32.768 kHz (RTC), 48 MHz |
| Additional Specs.: | D hole For BO Motor (mm): 6, LED_BUILTIN |
| USB | Full-Speed USB Device and embedded Host |
| Antenna Gain | 2dB (bundled pentaband antenna) |
| carrier frequency | 433/868/915 MHz |
| Working region | EU/US (confirmed) other countries check your regions spectrum availability |
| Length (mm): | 67.64 mm |
| Width (mm): | 25 mm |
| Weight (g): | 32 gr. |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 8 6 2.5 cm |
