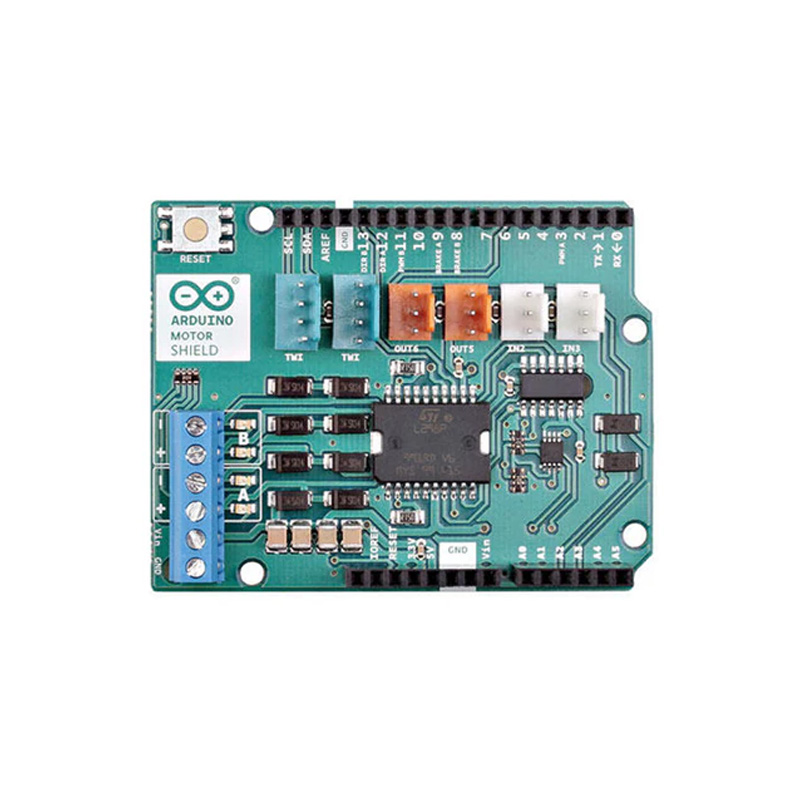

Official Arduino Motor Shield A000079

The Official Arduino Motor Shield is a powerful and versatile accessory designed to enhance the capabilities of your Official Arduino projects. Built upon the L298 dual full-bridge driver, this shield enables users to control various inductive loads, making it an essential tool for applications involving motors, relays, and solenoids.

The Official Arduino Motor Shield is an indispensable tool for anyone looking to add motor control functionality to their Official Arduino projects. Its combination of independent motor control, current measurement, and TinkerKit compatibility makes it a versatile solution for a wide range of applications.

Features:

1. Dual Full-Bridge Driver (L298): Controls two DC motors independently.
2. Independent Motor Control: Adjusts speed and direction for each motor separately.
3. Current Measurement: Monitors motor current absorption for performance diagnostics.
4. TinkerKit Compatibility: Easily integrates with TinkerKit modules for quick project development.
5. User-Friendly Design: Simplifies wiring and connections for both beginners and advanced users.
6. Protection Features: Includes thermal shutdown and overload protection for safety.

Specifications:

1. Motor Controller: L298P
2. Operating Voltage: 5-12V
3. Maximum Current:
   1. 2A per channel
   2. 4A maximum with external power supply
4. Maximum Voltage (VIN): 18V
5. TinkerKit Connectors: Yes, 6 connectors available
6. Screw Terminals: Yes, for secure motor connections
7. Status LEDs: 2 per channel for monitoring operational status

Package includes:

1 x Official Arduino Motor Shield A000079
