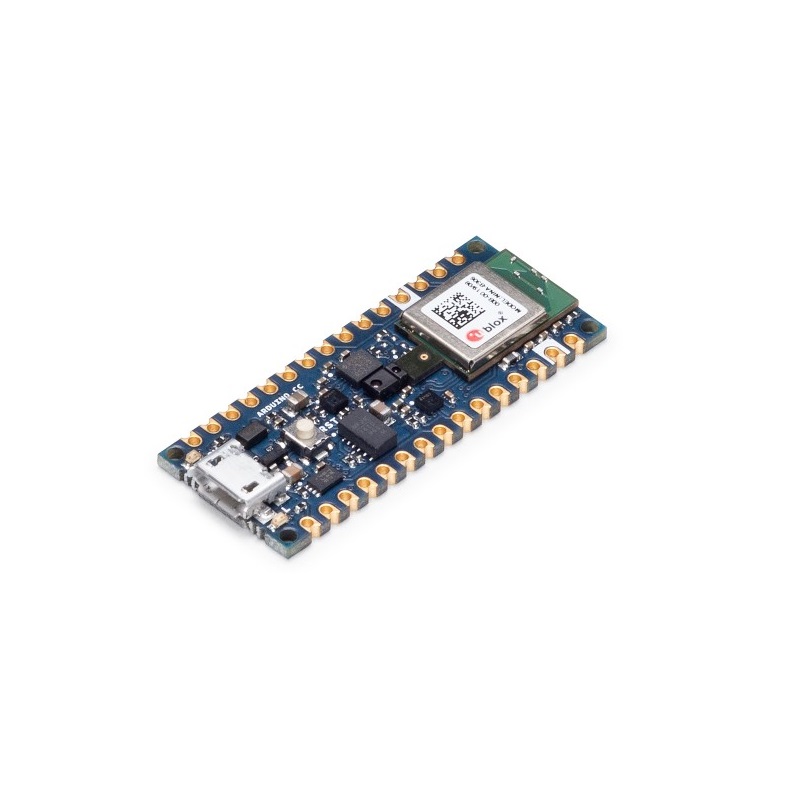

Official Arduino Nano 33 BLE Sense Rev2 ABX00069

The Original Arduino Nano 33 BLE Sense Rev2 ABX00069 is an evolution of the traditional Arduino Nano, but featuring a lot more powerful processor, the nRF52840 from Nordic Semiconductors, a 32-bit ARM Cortex -M4 CPU running at 64 MHz. This will allow you to make larger programs than with the Arduino Uno (it has 1MB of program memory, 32 times bigger), and with a lot more variables (the RAM is 128 times bigger). The main processor includes other amazing features like Bluetooth pairing via NFC and ultra-low power consumption modes.

The Nano 33 BLE Sense is Arduinos 3.3V AI-enabled board in the smallest available form factor: 45x18mm! The Arduino Nano 33 BLE Sense is a completely new board on a well-known form factor. It comes with a series of embedded sensors. The Original Arduino Nano 33 BLE Sense is a compact and powerful microcontroller board designed for various applications, particularly in the fields of Internet of Things (IoT), sensor-based systems, and wearables. Its based on the nRF52840 chipset and offers a Bluetooth Low Energy (BLE) connection, as well as built-in sensors that make it ideal for developing projects related to environmental sensing, motion detection, and data processing.

Note FYI: Arduino officials have replaced LSM9DS1 (9 axis) with a combination of two IMUs (BMI270 6 axis IMU and BMM150 3 axis IMU).

Reason for change:

1. The IMU (LSM9DS1), the temperature sensor (HTS221), and the power supply (MPM3610) are replaced due to a shortage of these components.
2. The additional jumper and test points are added to improve the customer experience.

Use your MKR board on Arduinos IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.

Features:

1. Original Arduino Nano 33 BLE Sense: Embedded Artificial Intelligence, running Edge Computing applications (AI) on it using TinyML.
2. Bluetooth pairing via NFC.
3. The communications chipset on the Nano 33 BLE Sense can be both a BLE and Bluetooth client and host device.
4. 9-axis inertial sensor that makes this board ideal for wearable devices.
5. Humidity, and temperature sensors: to get highly accurate measurements of the environmental conditions.
6. Barometric sensor by which you could make a simple weather station.
7. Microphone to capture and analyze sound in real-time.
8. Gesture, proximity, light color, and light intensity sensor that estimates the rooms luminosity, but also whether someone is moving close to the board.

Package Includes:

1 x Official Original Arduino Nano 33 BLE Sense Rev2 ABX00069
