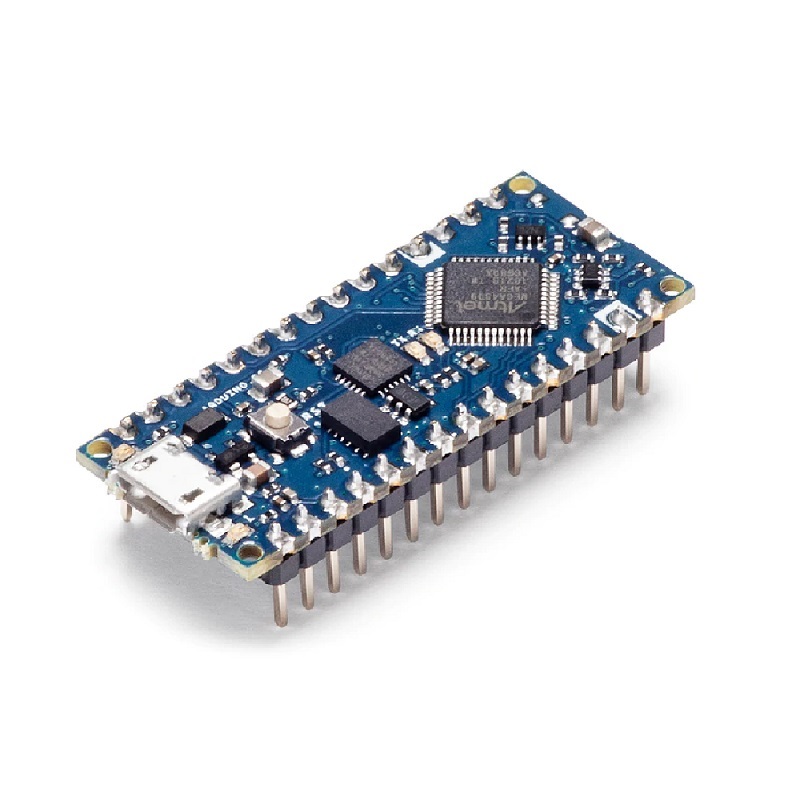

Official Arduino Nano Every With Headers ABX00033
₹960.00
The Nano Every is Arduinos 5V compatible board in the smallest available form factor: 45x18mm!
The Official Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a larger projects.
The Official Arduino Nano Every is an evolution of the traditional Official Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Official Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).
Each set of headers allows you to stack a Qwiic Nano shield on top of your Official Arduino Nano or plug them into a solderless breadboard. Note: Soldering is required for functionality and physical attachment to a shield or board
Features:
- Easy to use
- Brand new product
- Small in size
- Easy to learn with Arduino
- Color: Blue
- low cost
- Low power consumptions
Packages Includes:
1 x Official Arduino Nano Every With Headers ABX00033
| Item Type: | Development Board, With Header |
|---|---|
| Model Type: | Nano |
| Model No.: | ABX00033 |
| Input Voltage (V): | 7-21V |
| DC Current per I/O Pin (mA) | 20 |
| DC Current for 3.3V Pin(mA) | 50 |
| Clock Speed | 20 MHz |
| CPU Flash Memory | 48KB |
| SRAM | 6KB |
| EEPROM | 256byte (ATMega4809) |
| PWM Pins | 5 (D3, D5, D6, D9, D10) |
| UART | 1 |
| SPI | 1 |
| I2C: | 1 |
| Analog I/O Pins | Input Pins 8 (ADC 10 bit), Out put Only through PWM (no DAC) |
| External Interrupt: | all digital pins |
| On Board LED | 13 |
| USB | Uses the ATSAMD11D14A |
| Length (mm): | 45 mm |
| Width (mm): | 18 mm |
| Height (mm): | 2 |
| Weight (g): | 5 gr (with headers) |
| Shipping Weight | 0.017 kg |
| Shipping Dimensions | 8 6 3 cm |
