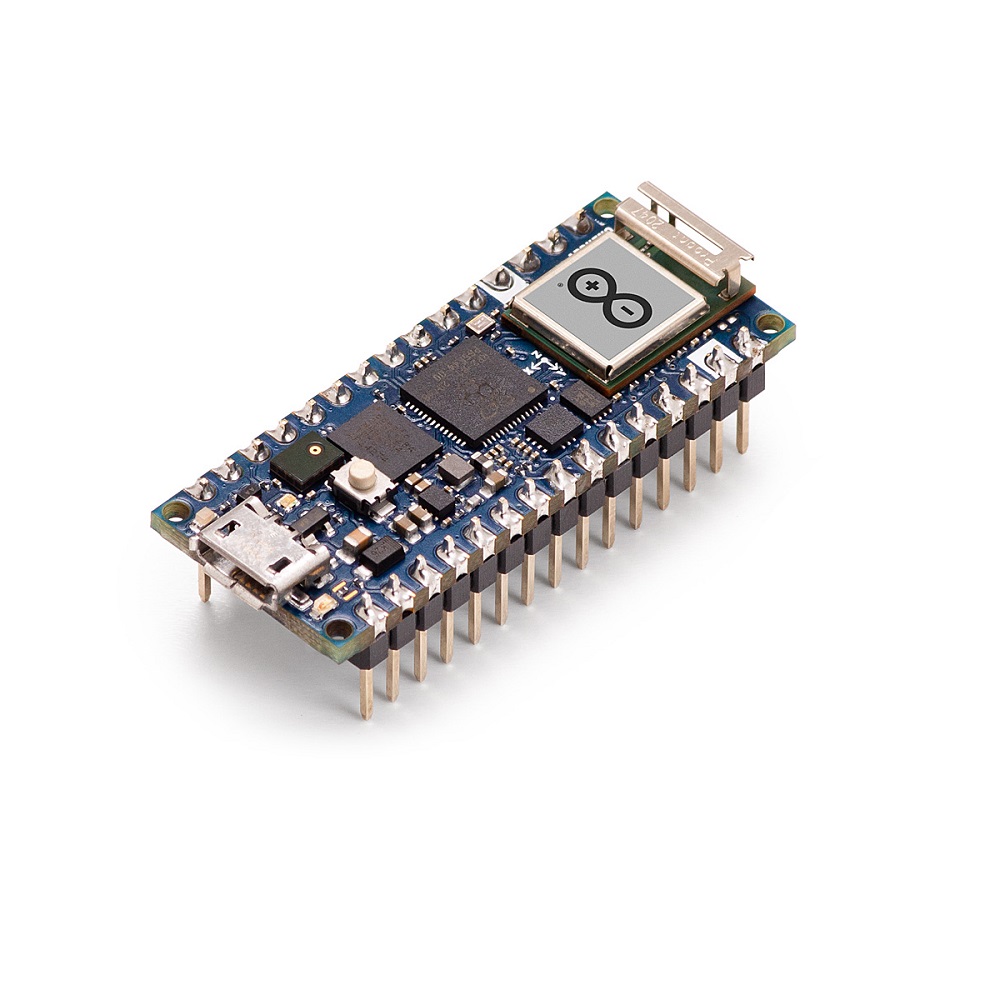

Official Arduino Nano RP2040 Connect with Header ABX00053

While the news-breaking launch of the Raspberry Pi Pico is still fresh in our minds, here is another launch of a tiny but powerful development board in the world of microcontroller boards on the footprint of Raspberry Pi  Pico from Official Arduino officials.

Official Arduino named it Official Arduino Nano RP2040 Connect a newly launched Microcontroller board welcoming the Raspberry Pis RP2040chip on which NANO connect has been built. The Official Arduino Nano RP2040 Connect shares a similar form factor to the Raspberry Pi Pico, but it includes extra functionality, chiefly WiFi and Bluetooth along with a 9-axis IMU sensor and microphone.

Official Arduino also broke the news that they will be porting the Official Arduino IDE for use with the RP2040 chip. This is welcome news for C/C++ developers and embedded hobbyists alike.

Useful link:

Nano RP2040 Connect

Features:

Raspberry Pi RP2040 Microcontroller:

1. 133MHz 32bit Dual Core Arm Cortex-M0+
2. 264kB on-chip SRAM
3. Direct Memory Access (DMA) controller
4. Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus
5. USB 1.1 controller and PHY, with host and device support
6. 8 PIO state machines
7. Programmable IO (PIO) for extended peripheral support
8. 4 channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion
9. SWD Debugging
10. 2 on-chip PLLs to generate USB and core clock
11. 40nm process node
12. Multiple low power mode support
13. USB 1.1 Host/Device
14. Internal Voltage Regulator to supply the core voltage
15. Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)

U-blox Nina W102 WiFi/Bluetooth Module:

1. 240MHz 32bit Dual Core Xtensa LX6
2. 520kB on-chip SRAM
3. 448 Kbyte ROM for booting and core functions
4. 16 Mbit FLASH for code storage including hardware encryption to protect programs
   and data
5. 1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
6. Flash-Encryption, and Chip-ID
7. IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
8. Bluetooth 4.2
9. Integrated Planar Inverted-F Antenna (PIFA)
10. 4x 12-bit ADC
11. 3x I2C, SDIO, CAN, QSPI

Memory:

1. AT25SF128A 16MB NOR Flash
2. QSPI data transfer rate up to 532Mbps
3. 100K program/erase cycles

For the detailed description of the product Please go through the datasheet in the attachments.

Package Includes:

1 x Official Arduino Nano RP2040 Connect with Header ABX00053

For Arduino, Nano RP2040 Connect without Header Click Here
