PJRC Prop Shield with Motion Sensor for Teensy 3.2 and Teensy-LC Development Board

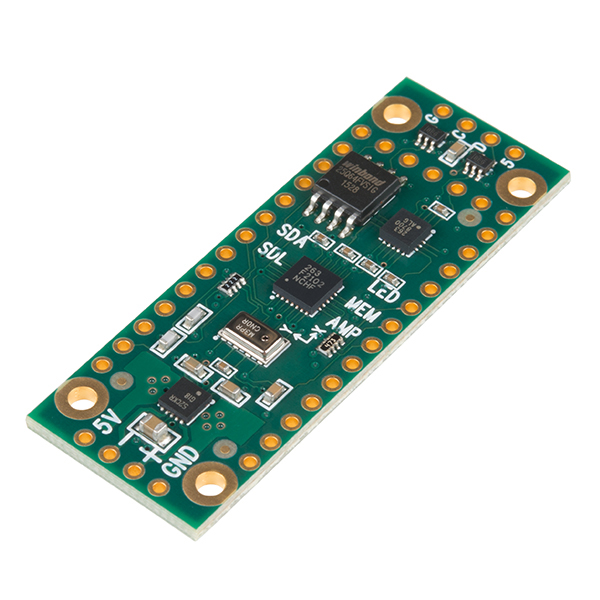

The Teensy Prop Shield is meant for making interactive light and sound effects on small, handheld props and wearable costumes. This shield features 10DoF (Degrees of Freedom) motion sensors, a 2W audio amp, high-speed 5V buffers for driving APA102 LEDs, and an 8MB flash memory. This little board is about the size of the Teensy 3.2, just slightly longer to allow space for mounting holes and connections for power, speaker and LEDs.

The Teensy Prop Shields crowning glory is, of course, its Freescale 10DoF sensors. The boards sensor suite comprises an FXOS8700CQ 6-axis linear accelerometer and magnetometer, an FXAS21002C 3-axis digital angular rate gyroscope and an MPL3115A2 precision pressure/altitude and temperature gauge.

Thats not all! The Teensy Prop Shield has been equipped with a slew of other features. Need an amplifier? The Teensy Prop Shield has one rated at 2W and is capable of driving 4 or 8 Ohm speakers. Additionally, the Prop Shield has 5V buffers meant to send data to Dotstar or APA102 type addressable LEDs. It also has an onboard 8MB flash memory, meant for storing sound clips and images, logging data and many other uses.

Features:

1. Motion Sensors Allow motion interactive light and sound.
2. Audio Amplifier Clear quality audio output to a small speaker.
3. Fast LED Driver Drive APA102 / Dotstar LEDs for colorful lighting with rapid response.
4. Flash Memory 8MB storage for images, sound clips, and data logging.
5. 3-Axis Accelerometer and X/Y/Z Magnetometer by Freescale FXOS8700CQ.
6. 3-Axis Digital Angular Rate Gyroscope by Freescale FXAS21002.
7. Altimeter & Temperature by Freescale Xtrinsic Xtrinsic MPL3115A2.
8. 2W Audio Amplification by TI LM48310 Boomer IC.
9. 64MBit (8MB) Serial flash memory by Winbond W25Q64FV.
10. 3.3V operation.

Datasheets:

1. FXOS8700CQ  6-Axis Sensor, Linear Accelerometer & Magnetometer.
2. FXAS21002C  3-Axis Digital Angular Rate Gyroscope.
3. MPL3115A2  Precision Pressure/Altitude & Temperature.
4. LM48310  2.6W Mono Class D Audio Power Amplifier.
5. W25Q64FV  64 Mbit (8 Mbyte) Serial Flash Memory.
6. SN74AHCT1G08  Single 2-Input AND Gate.

Project Link:

Prop Shield With Motion Sensors

Package Includes:

1 x PJRC Prop Shield with Motion Sensor for Teensy 3.2 and Teensy-LC Development Board
