Raspberry Pi Compute Module 4 – 4GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM4104032)

5,109.00

Added to wishlistRemoved from wishlist 0

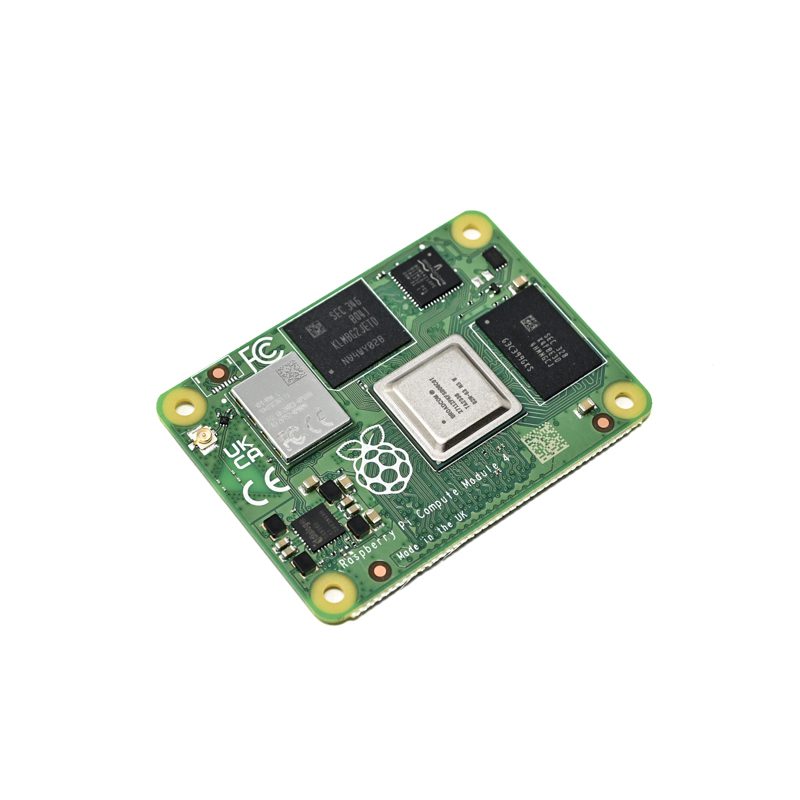

This is a Raspberry Pi Compute Module 4 with 4GB RAM 32GB eMMC (Wireless).

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.

Raspberry Pi Compute Module 4 has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.


Features:

  1. Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  2. H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
  3. OpenGL ES 3.0 graphics
  4. Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
  5. Options for 0GB (Lite), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
  6. Option for fully certified radio module
  7. 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
  8. Bluetooth 5.0, BLE
  9. On-board electronic switch to select either external or PCB trace antenna

Package Includes:

1 x Raspberry Pi Compute Module 4, with 4GB RAM, 32GB eMMC,Wireless

Item Type: Development Board
Model Type: CM4
RAM Capacity: 4GB
RAM: 4GB LPDDR4-3200 SDRAM
Connectivity 1 PCIe 1-lane Host, Gen 2 ( 5 Gbps ) 1 USB 2.0 port ( highspeed ) 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless Bluetooth 5.0, BLE
Operating Power 5VDC
Video Dual HDMI interface (up to 4Kp60 supported) 2-lane MIPI DSI display interface 2-lane MIPI CSI camera interface 4-lane MIPI DSI display interface 4-lane MIPI CSI camera interface
Multimedia H.265 (4Kp60 decode) H.264 (1080p60 decode,1080p30 encode); OpenGL ES 3.0 graphics
Length (mm): 55
Width (mm): 40
Height (mm): 2.4
Shipping Weight 0.04 kg
Shipping Dimensions 6 5 2 cm
