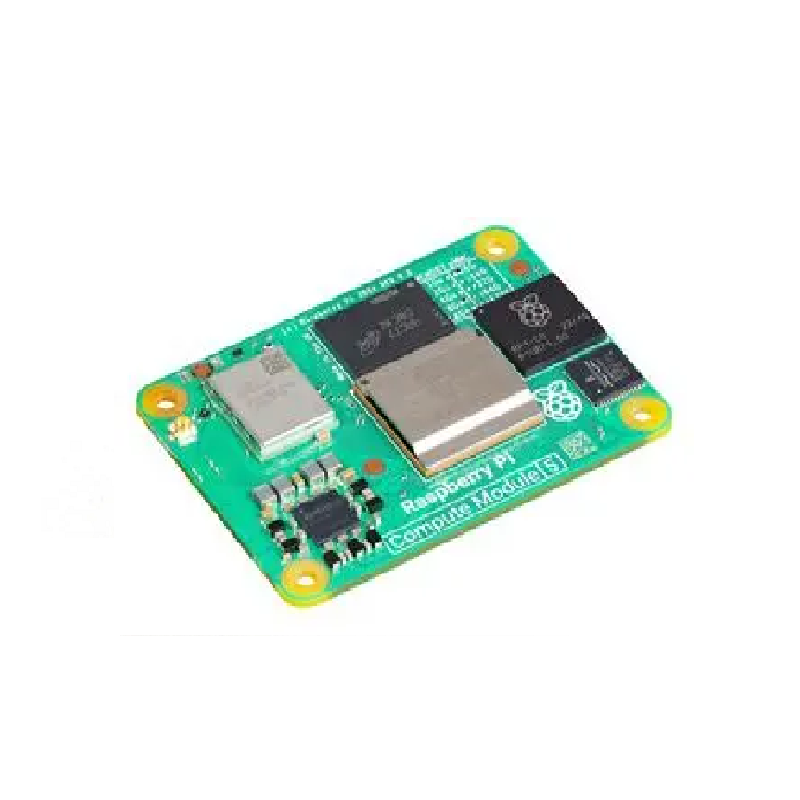

Raspberry Pi Compute Module 5- 8GB RAM, 16GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 CM5108016

The Raspberry Pi Compute Module 5 (CM5108016) is a powerful system-on-module designed for embedded applications. It features a quad-core ARM Cortex-A76 processor running at 2.4GHz, supported by 8GB of LPDDR4 RAM and 16GB of eMMC storage. With versatile connectivity options, it includes dual 4K HDMI ports, Gigabit Ethernet, USB 2.0 and 3.0 ports, and integrated 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0. The module offers up to 30 GPIO pins and supports various interfaces like I2C, SPI, and UART. Its compact size and wide operating temperature range make it ideal for custom systems and applications.

Features:

1. Processor: Broadcom BCM2712, quad-core ARM Cortex-A76 (2.4GHz).
2. Memory: 8GB LPDDR4 RAM, with options for 2GB, 4GB, and 16GB models.
3. Storage: 16GB eMMC storage.
4. Wireless Connectivity: 2.4GHz and 5GHz Wi-Fi (IEEE 802.11 b/g/n/ac), Bluetooth 5.0 BLE.
5. Video Outputs: Dual HDMI 2.0 ports (up to 4Kp60), 2 MIPI ports (CSI-2 and DSI).
6. Networking: Gigabit Ethernet PHY with IEEE 1588 support.
7. Power Supply: 5V input with USB PD support up to 5A.
8. Temperature Range: Operates from -20C to +85C.

Package Includes:

1 x Raspberry Pi Compute Module 5- 8GB RAM, 16GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 CM5108016
