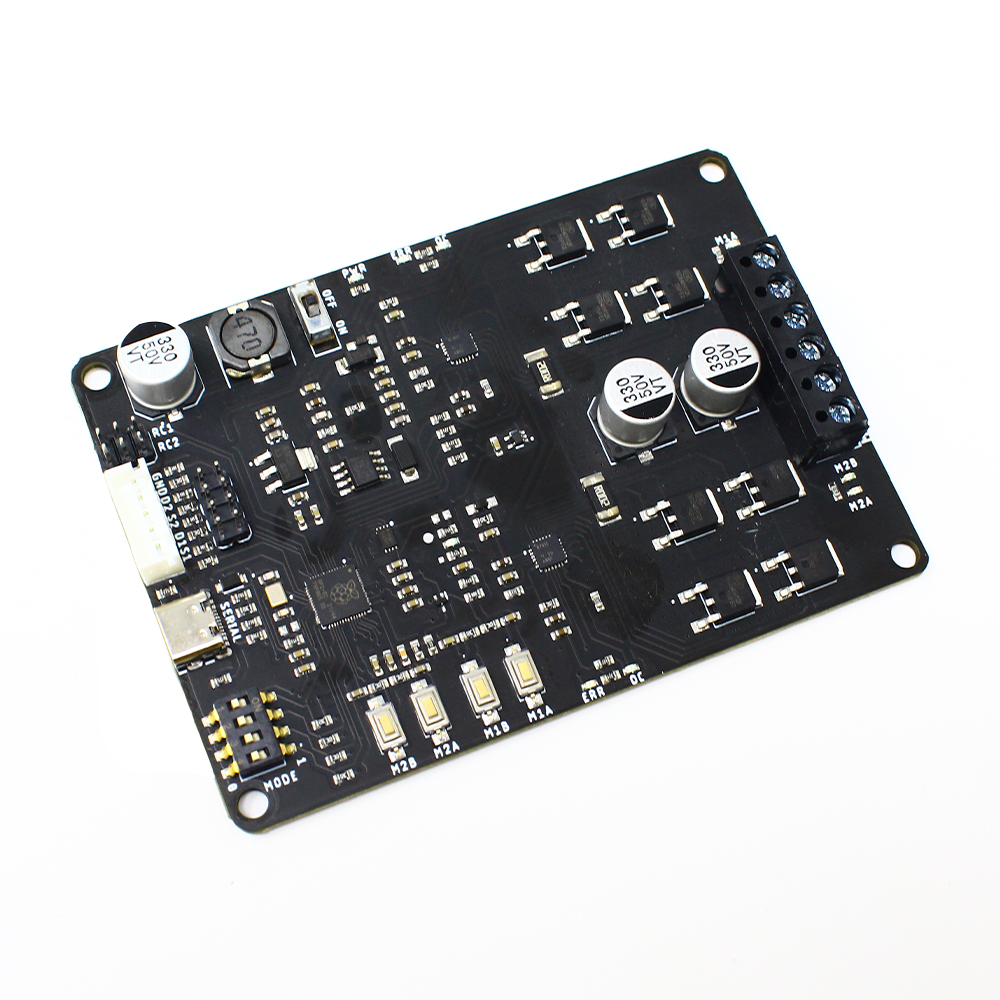

SmartElex 10D Smart Motor Driver (Dual Motor, PWM & RC)(Powered by Raspberry Pi)

We understand our makers needs and consequently add the most improved and powerful motor drivers with the latest features to provide a great utility that makes it useful for a wide variety of mechatronics. Here is a new SmartElex 10D Dual Channel High Current Motor Driver specifically designed for mobile robots.  It can be used in a wide range of applications such as in racing robots Combat robots, Robot Rumble, and many more.

Equipped with an onboard 5V 3A buck converter and supporting a wide motor operating voltage range, the SmartElex 10D Smart Motor Driver for PWM & RC Dual Motor (Powered by Raspberry Pi) delivers exceptional performance across a variety of brushed DC motor applications. It efficiently handles both low-power motors and high-current motors with continuous currents up to 10A and peak currents up to 30Acapabilities that surpass standard motor drivers. Built-in current limiting and temperature control features ensure reliable and safe operation, protecting your system under all conditions.

The board incorporates most of the components of the typical applications with the minimum interface, the board is ready to Plug and Play. Simply add in power, do simple coding and this board is ready to drive a brushed motor. It also offers several enhancements such as support for both locked-antiphase and sign-magnitude PWM signals as well as using full solid-state components which result in faster response time eliminate the wear and tear of the mechanical relay and reduce the time for wiring.

Features:

1. Wide 7V to 22V motor Operating Voltage.
2. On board 5V 3A Buck Converter.
3. Continuous 10A maximum current without Heatsink
4. Two brushed DC motor Bidirectional control.
5. 20A Peak Motor Current for 10 Sec
6. Current limiting at 35A.
7. PWM frequency up to 490 Hz
8. Onboard Temperature Sensor
9. Internal thermal shutdown
10. Under-voltage lockout
11. PWM and direction-controlled driving of four externally powered NMOS transistors
12. 3V and 5V logic level input.

Package Includes:

1 x SmartElex 10D Smart Motor Driver (Dual Motor , PWM & RC)(Powered by Raspberry Pi)

1 x Interfacing cable
