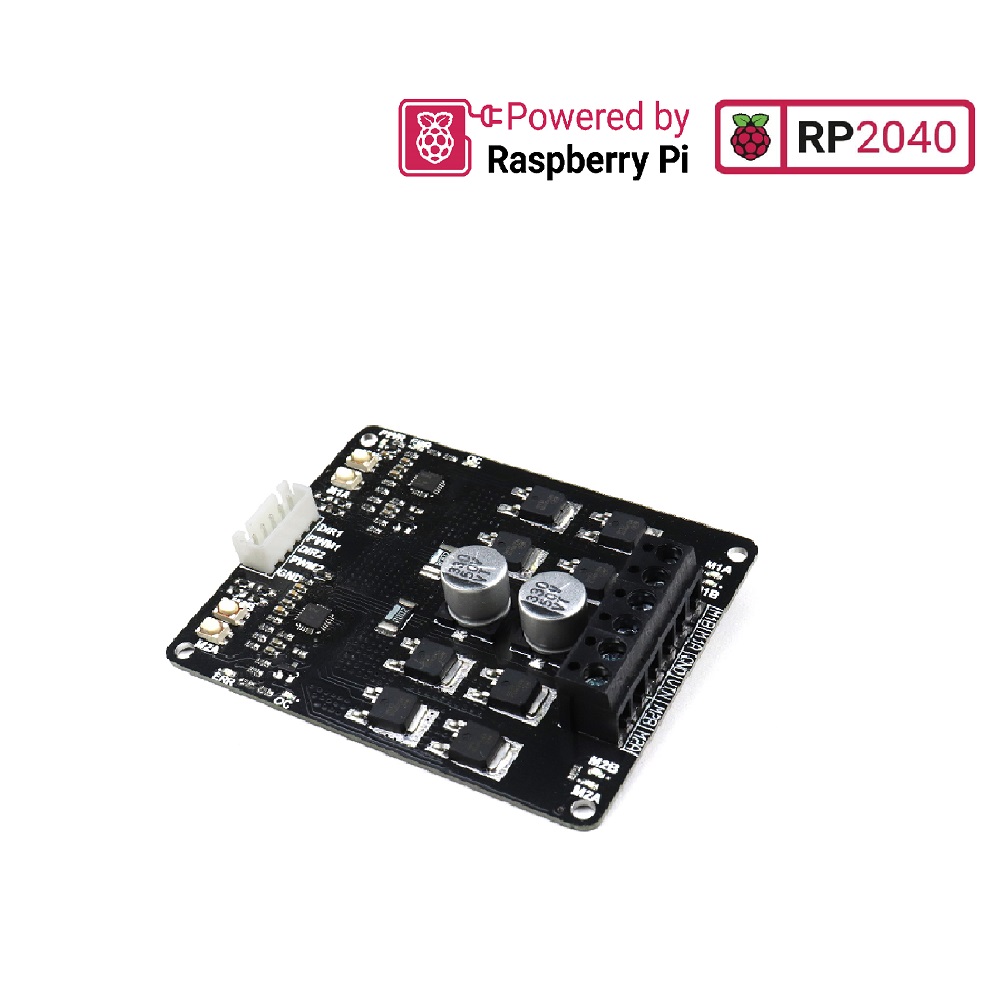

SmartElex 15D Dual Channel DC Motor Driver (30A Peak) (Dual Motor, PWM)
₹669.00
Brush DC motors are the most widely used drivers due to their low cost and simple drive control options. SmartElex 15D Dual Channel DC Motor Driver is powerful motor driver board. This motor driver has a lot of great specs that make it useful for a wide variety of mechatronics.
The wide operating voltage range and easy to interface with microcontrollers (MCU) allows you to quickly adopt this module into applications.
Note: Colour of the product & cable may vary based on availability.
Connection Diagram:
Interfacing with Aryabhatta
Interfacing with Arduino
To know more about the motor driver, refer to this article. How to operate the SmartElex Motor Driver in RC Mode
Features :
- Max Peak current: 30 Amp(For 10 Seconds).
- One brushed DC motor Bidirectional control.
- Current limiting at 30A.
- Support TTL PWM from the microcontroller
- Internal thermal shutdown
- Under-voltage lockout
- PWM and direction controlled driving of four externally powered NMOS transistors
- 3V and 5V logic level input.
Package Includes :
1 x SmartElex 15D Dual Channel DC Motor Driver (30A Peak) (Dual Motor, PWM)
1 x Connection Cable.
| Model Type: | Motor Driver |
|---|---|
| No. of Channels: | 2 |
| Continuous Current (A): | 13 |
| Voltage Rating (V): | 6.8 to 30 |
| Driver Model | SmartElex 15D |
| Peak Current (A) | 30 |
| Over-Current Protection (A) | Yes |
| Thermal Protection (Y/N) | Yes |
| LED Indicator (Y/N) | Yes |
| Cooling Fan | No |
| Arduino Shield (Y/N): | No- can be used with Wire connection |
| Dimensions (L x W x H) mm | 75 x 63 x 15 |
| Weight (g): | 30 |
| Shipping Weight | 0.033 kg |
| Shipping Dimensions | 6 4 1 cm |
