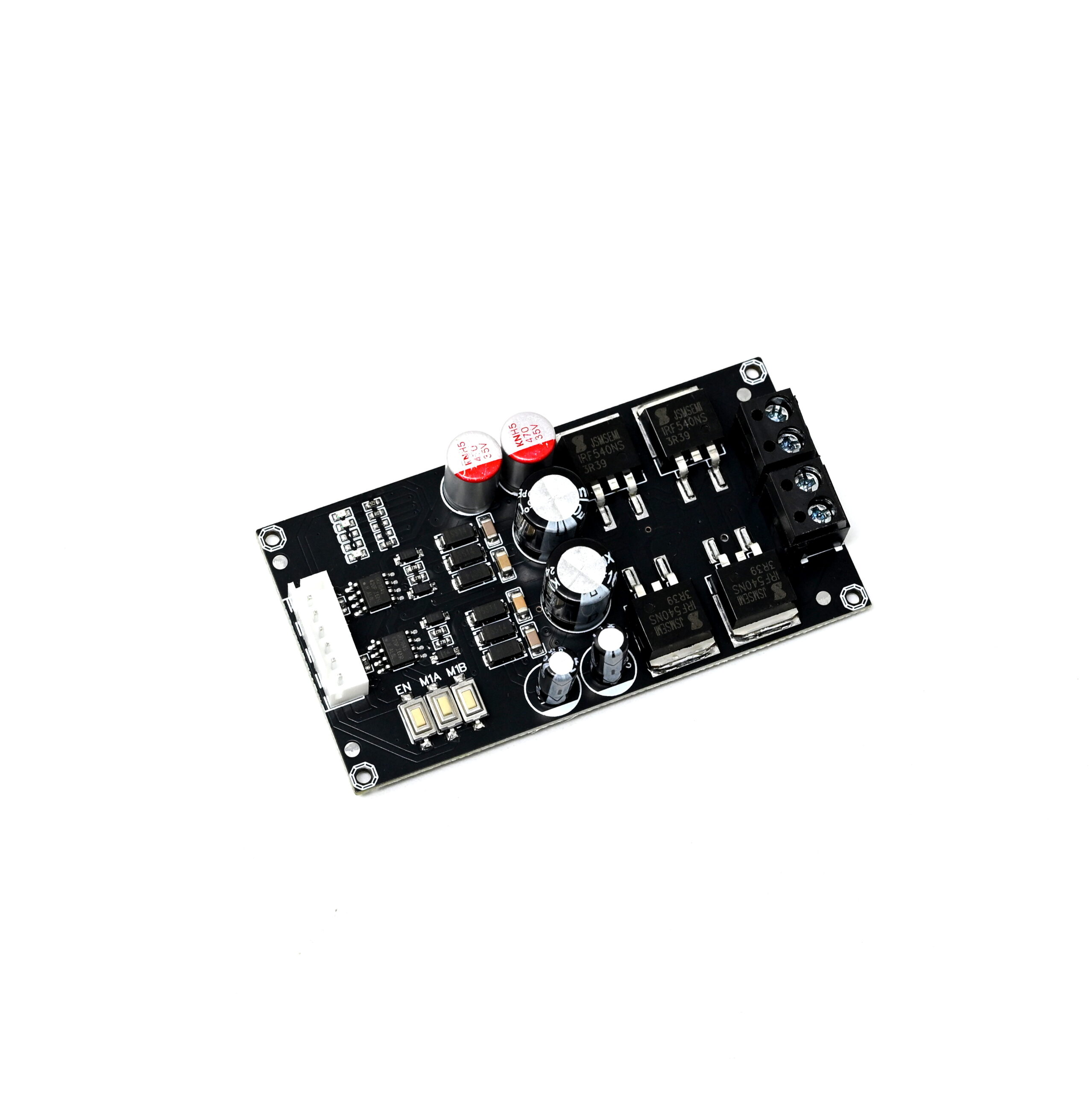

SmartElex 5S Motor Driver
₹373.00
Brush DC motors are the most widely used drivers due to their low cost and simple drive control options. SmartElex 5S DC Motor Driver is powerful motor driver board. This motor driver has a lot of great specs that make it useful for a wide variety of mechatronics.
The wide operating voltage range and easy to interface with microcontrollers (MCU) allow you to quickly adopt this module into applications. The pin map is as given below. To know more about this motor driver, please refer to the user manual in the attachment section.
Features:
- Wide 6 V to 30 V motor operating voltage.
- Continuous 5A maximum current without a heat sink and 10 A peak current for 10 seconds.
- One brushed DC motor bidirectional control.
- Current limiting at 5 A.
- Overvoltage lockout.
- PWM frequency up to 32 kHz.
- Supports TTL PWM from micro-controller.
- Internal thermal shutdown.
- Under-voltage lockout.
- PWM and direction controlled driving of four externally powered NMOS transistors.
- 3.3V and 5V logic level input
Package Includes:
1 x SmartElex 5S Motor Driver
| Voltage Rating (V): | 6 to 30 |
|---|---|
| Continuous Current (A): | 5 |
| Peak Current (A) | 10A for 10 seconds |
| PWM Frequency Range (KHz): | 32 |
| Input Logic Level | 3.3V and 5V compatible |
| Dimensions (L x W x H) mm | 80x42x18 |
| Weight (g): | 29 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 9 6 2 cm |
