SmartElex AT89S52 Development Board

Click here to see why SmartElex is different!

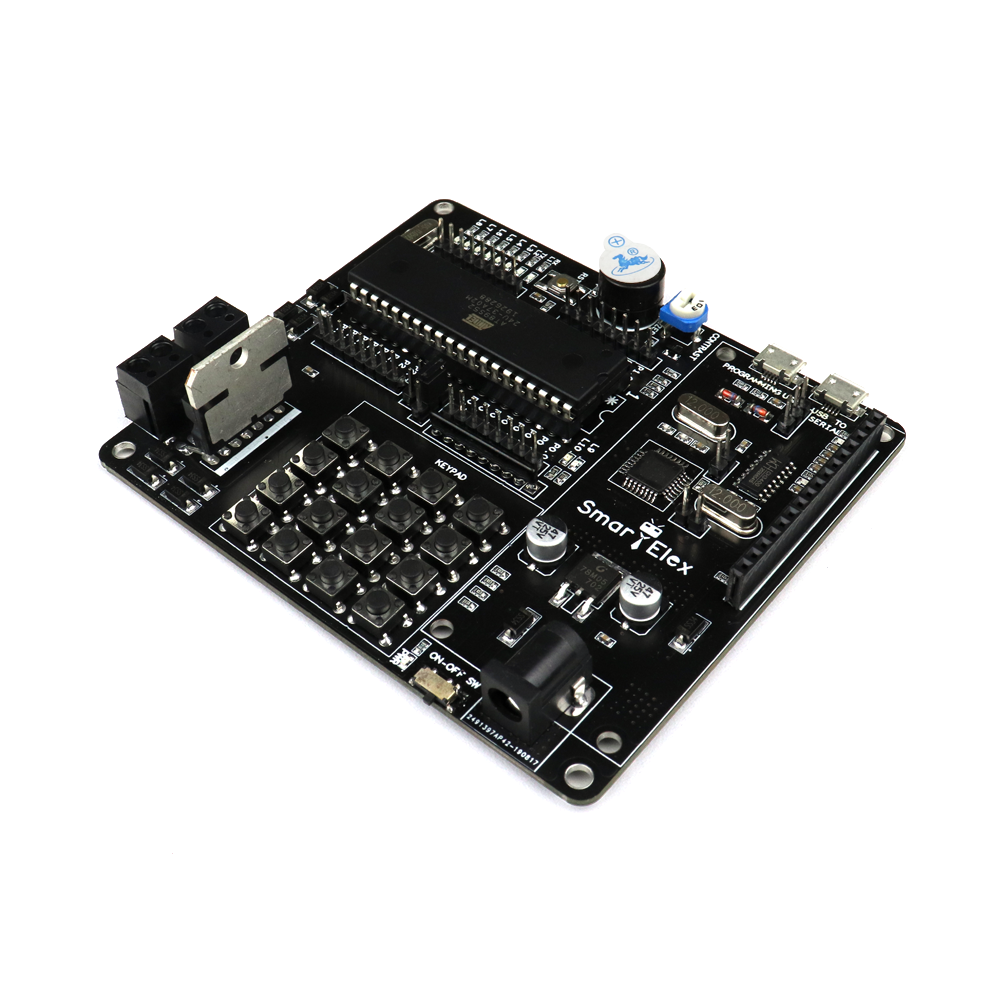

The SmartElex AT89S52 Development Board can be used to evaluate and demonstrate the capabilities of the AT89S52 microcontroller. The MCU socket onboard provides support for 40 pin DIP package of AT89S52 controller. This board designed for the General Purpose application.

Board has onboard power supply circuit, Micro USB for USBASP programmer, Micro USB for CH340G serial communication with the computer and another serial device, power status LED, Reset switch, Buzzer, 8 User LED, DC motor driver L298P, 44 matrix keypad,162 LCD and port extensions for all 4 ports. You can power the Board through the DC plug-in jack. The onboard power regulator can handle anything from 9 to 15VDC.

Pinouts:

Note:

The board does not come with Display shown in the pictures. you have to buy it separately. Click here to buy

Or You can buy the board with display included in the package. Click here to buy

Specifications and Features:

1. Recommended Input Voltage: 12V
2. Min-Max Input Voltage: 9-15V
3. 5 mm standard DC plug-in jack for Input supply
4. Onboard 5V regulator (78M05) circuit.
5. On-Board power supply on-off switch
6. Power Status LED.
7. On-Board DC motor Driver L298P
8. On-Board 44 Matrix Keypad.
9. On-Board 4 bit 162 LCD Display.
10. 0592MHz crystal.
11. Port extensions for all ports with detailed pin labelling for easy identification of pins
12. Onboard USB TO Serial CH340 Chip.
13. Onboard Micro USB USBASP for loading HEX file.
14. Board Diamensions(LxWxH)mm: 105 x 92 x 15
15. Weight:65g

Package Includes:

1 x SmartElex AT89S52 Development Board.
