SmartElex ATmega2560 Development Board with LCD1602 LCD Display-Upgraded

Click here to see why SmartElex is different!

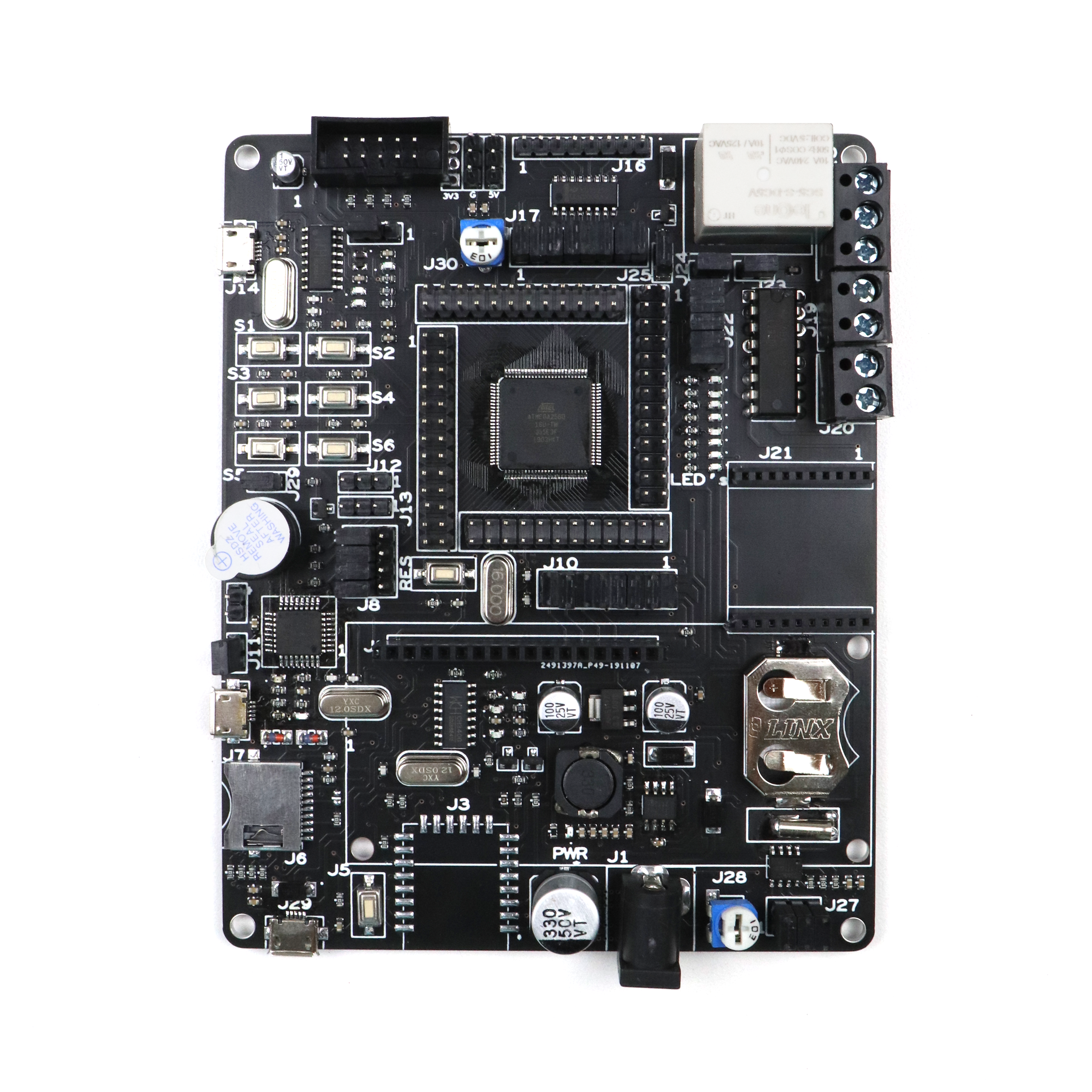

SmartElex ATMEGA2560 Development Board is a powerful development platform based on ATMEGA2560 microcontroller which is one of the most feature-rich AVR microcontrollers from Atmel, featuring 256K Flash, 8K RAM, 86 I/O lines arranged in nine 8 bit ports, 16 ADCs, 4 UARTs, 6 timers, 8 interrupts and much more. This board is ideal for developing embedded applications involving high-speed wireless communication, USB-based data logging, real-time data monitoring, and control etc.

The Board has lots of peripherals such as LCD, SD card, XBee wireless adaptor board, CH340 USB to Serial converter, 2 servo motors connector, DS1307 based Real-Time Clock, UL2003 7 channel driver, L293D dual DC motor driver, 1 Potentiometer, 8 switches, 8 LEDs, Buzzer, Relay and JTAG interface etc. The I/O pins on the microcontroller can be accessed from Male Burg pin connectors. It supports the operating supply voltage between 7V to 15V and has built-in reverse polarity protection.

Note: With this Board, we have an LCD1602 Parallel LCD Display in two Backlight Colour (Blue and Yellow) we will ship it randomly according to availability.

Specifications and Features:

1. Microcontroller: ATMEGA2560 with 16 MHz crystal with On-Board USBASP Programmer.
2. Power: 7 to 15 VDC with Reverse Polarity Protection.
3. 2.4GHz ZigBee (XBee) wireless module adaptor
4. 216 Character Alphanumeric LCD.
5. SD card Holder.
6. CH340G USB to Serial converter.
7. ESP8255 Adaptor interface with USB to Serial Converter.
8. Connector for 2 servo motors.
9. DS1307 based Real-Time Clock with Battery Backup.
10. ULN2003 7 channel 500mA driver.
11. L293D 600mA Dual DC motor Driver.
12. 1 Analog Potentiometers, 8 Switches, 8 LEDs, Buzzer.
13. Switches: Reset, Power (ON-OFF SWITCH).
14. Male Burg Pin Connectors for all ports.

Package Includes:

1 x SmartElex ATmega2560 Development Board.(upgraded)

1 x?LCD1602 Parallel LCD Display
