Touch Screen Driver Board Compatible With 4- Wire Cable
₹291.00

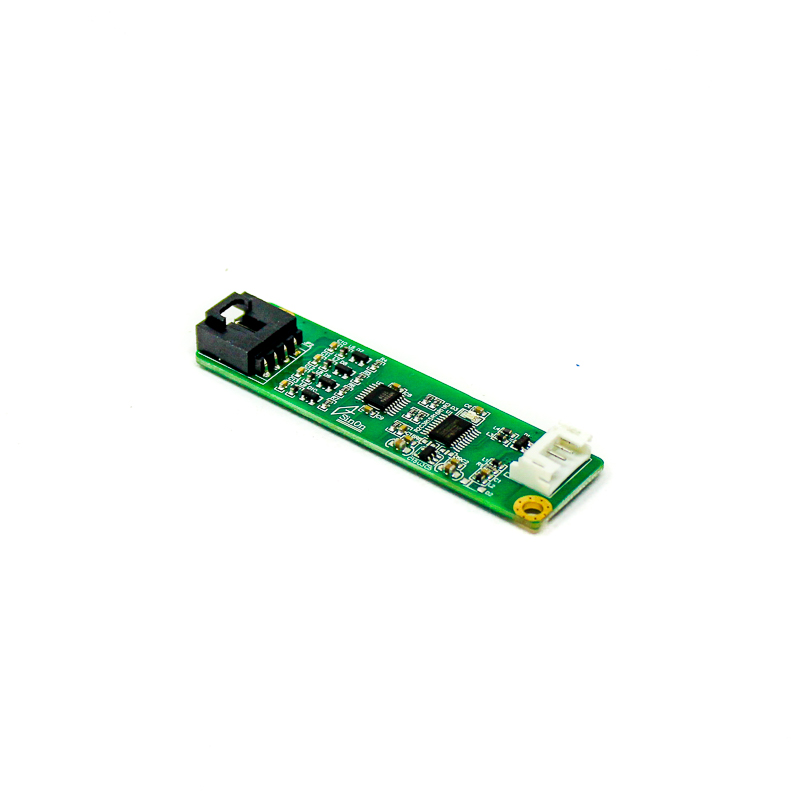

This is a touch screen driver board that accepts four-wire cables. Its found in touch-screen displays. The black port of this Driver module will be connected to the display, while the white port will be connected to a Raspberry Pi. We can control the display from the Raspberry Pi. It is a nice controller board that solves this problem by acting as a touch->USB converter and also comes with calibration software. The calibration software supports Windows,iMac, DOS, Linux systems.
Features:
- Right mouse button Support
- Drawing line test Multi-language operating window Support
- Multiple Monitors With the visual rotation supports
Package Includes:
1 x Touch Screen Driver Board Compatible With 4- Wire Cable
| Input Voltage (V) | 5 |
|---|---|
| Max. Operating Current (mA) | 100 |
| Typical Current(mA) | 70 |
| Interface | USB 1.1 |
| Operating Temperature (C) | 0 to 50 |
| Storage condition () | -40 to 80 |
| Opt. Relative Humidity(RH) | 95%@60 |
| Length (mm): | 70 |
| Width (mm): | 20 |
| Height (mm): | 7 |
| Weight (g): | 10 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 10 8 5 cm |
