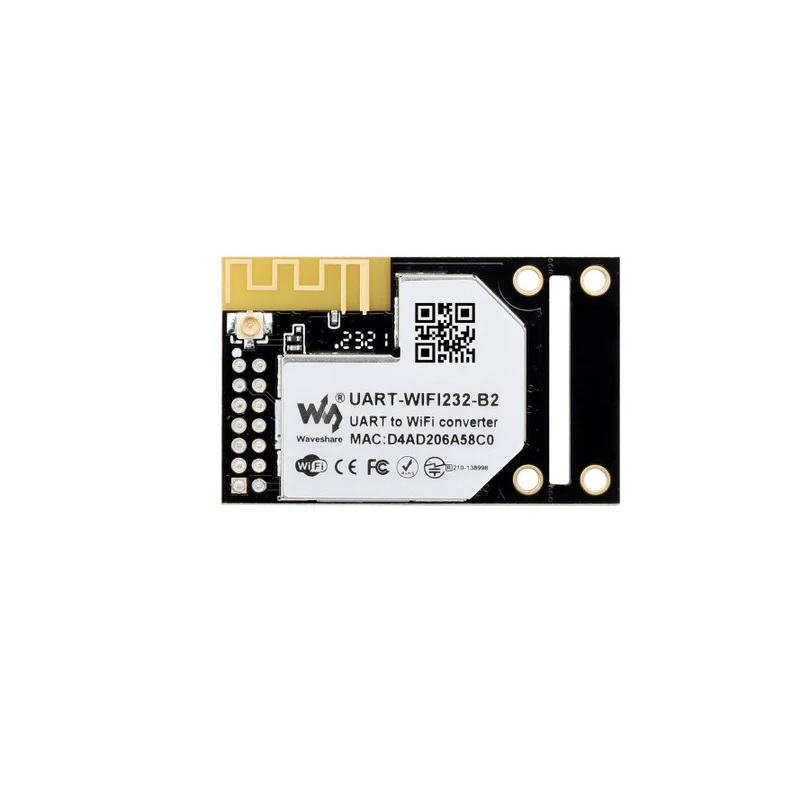

USR-WIFI232-B2 IOT UART WiFi Module | Serial TTL UART to WiFi Industrial IOT Module is a compact, industrial-grade module enabling seamless serial TTL to Wi-Fi integration. USR IOT UART WiFi Module Supports functions like serial server, Modbus/MQTT gateway, and UART to HTTPD Client, ideal for IoT applications, data acquisition, and device monitoring. Power adapter not included.
Features:
- Multiple Communication Protocols: Supports bi-directional transparent transmission via TTL serial port, WiFi, and Ethernet. Functions as a serial server, Modbus gateway, MQTT gateway, and UART to HTTPD Client.
- Versatile Connectivity: Seamlessly integrates traditional serial port devices or MCU-controlled devices into a WiFi wireless network.
- Compact and Practical Design: Small form factor, making it easy to install in various applications.
- Wide Application Range: Ideal for data acquisition, IoT gateway deployment, safety & security IoT solutions, and intelligent instrument monitoring.
- Reliable Performance: Industrial-grade design ensures durability and stability in demanding environments.
- Ease of Use:
- Simplifies the process of connecting devices to wireless networks without extensive configuration.
- Compatibility: Fully compliant with 802.11b/g/n standards for reliable and fast wireless communications.
Package Includes:
1 x USR-WIFI232-B2 IOT UART WiFi Module | Serial TTL UART to WiFi Industrial IOT Module
| Item Type: | WiFi Module |
|---|---|
| Power Supply | DC 3.3V (5%) |
| Ethernet | 10 / 100M auto-negotiation (Connection via pin header) |
| WiFi Standard | 802.11b/g/n compliant |
| Serial Port | UART |
| Frequency Band | 2.412 ~ 2.484 GHz |
| Wireless Network Mode | Station / AP / AP+Station Mode |
| Security Mechanism | WPA-PSK / WPA2-PSK |
| Transmitting power | 802.11b: +19dBm (Max.@11Mbps) 802.11g: +18dBm (Max.@54Mbps) 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7) |
| Receiving Sensitivity | 802.11b: -89dBm (@11Mbps) 802.11g: -81dBm (@54Mbps) 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7) |
| Data Bit | 5 ~ 9 bits |
| Configuration: | host, web browser, serial AT command |
| Operating Mode | Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU |
| Operating Temperature (C): | -40 ~ 85 |
| Humidity Range | 5% ~ 95% relative humidity |
| Shipping Weight | 0.006 kg |
| Shipping Dimensions | 8 7 3 cm |
