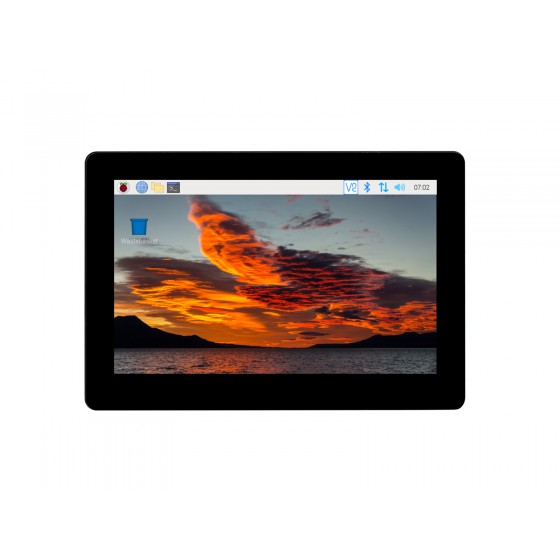

Waveshare 5″ Touch Screen Expansion for Raspberry Pi CM4 PoE Header Gigabit Ethernet 4K Output
₹5,547.00
Raspberry Pi CM4 kit with a 5-inch touch screen all-in-one machine. The PoE pin Gigabit Ethernet port supports 4K output, onboard four-way USB2.0, 5-inch touch screen, etc. The all-in-one kit is convenient for users to use.
Note:
- Do not plug and unplug any device except USB and HDMI while the baseboard is working.
- If the fan needs to be replaced, please confirm the fan voltage and then power on.
- The USB SLAVE interface is used to burn the image and cannot be used as an OTG interface.
- In normal use, it is necessary to provide at least 5V 2.5A power supply for CM4. Otherwise, there may be problems such as automatic shutdown, frequency reduction and so on.
- Onboard default 4-way USB 2.0 interface.
- Support POE pins, additional POE HAT is required if POE function is required.
- This screen needs to add a driver to work.
Useful Link:
https://www.waveshare.com/wiki/CM4-DISP-BASE-5A
Packages Includes:
1 x Waveshare 5 Touch Screen Expansion for Raspberry Pi CM4
| Input Power | 5V |
|---|---|
| CM4 Socket | Suitable for all variants of Compute Module 4 |
| Networking | Gigabit Ethernet RJ45 connector |
| M.2 M Key | Supports NVME SSD |
| POE | PoE header (additional PoE HAT is required to enable PoE feature) |
| USB | USB 2.0 4 |
| Display | 5 screen, 800 480 pixels, 5-point capacitive touch |
| Camera Mipi | CSI-2 port 2 (15pin 1.0mm FPC connector) |
| Video HDMI | Supports 4K 30fps output |
| RTC | Real-time clock with a battery socket and ability to wake Compute Module 4 |
| Storage | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants |
| Fan header | Allows speed adjustment and measurement, 5V / 12V |
| Dimensions | 127.7 87.45mm |
| Shipping Weight | 0.217 kg |
| Shipping Dimensions | 16 10 4 cm |
