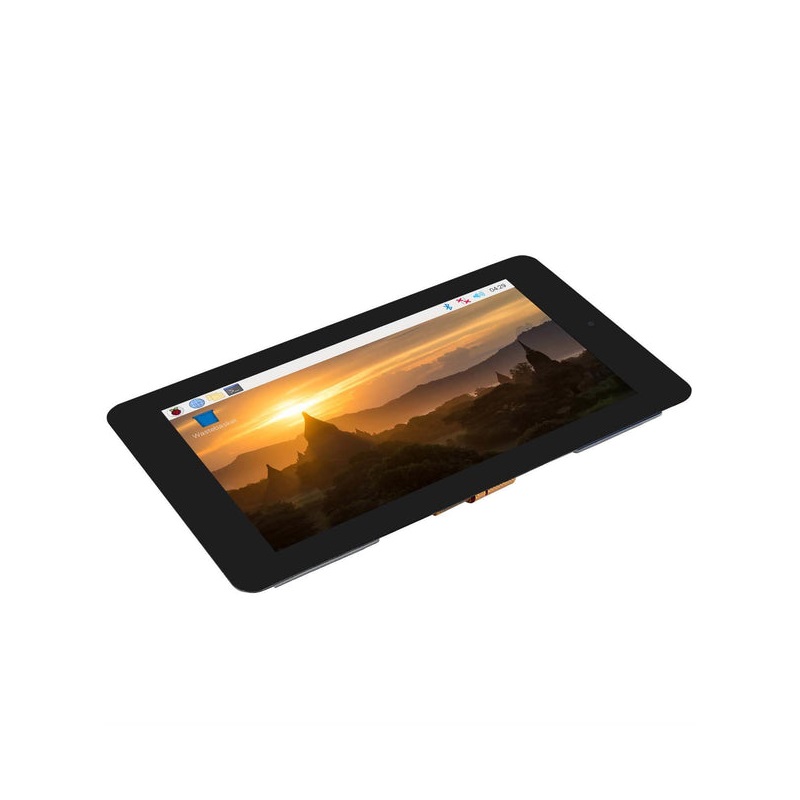

Waveshare 7inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800 x 480, DSI

This Waveshare 7inch Capacitive Touch Display for Raspberry Pi with 5MP Front Camera 800480 DSI which can be used with the same commands as the official Raspberry Pi camera module.

The display is a 7 panel offering up to 5-point capacitive touch (OS dependant) and 800480 resolution. The screen connects to your Raspberry Pi via the same DSI ribbon cable and 5V/GND jumper wire method as the official Raspberry Pi display. This leaves the majority of your GPIO pins free for your project.

The display backlight can be adjusted via software/touch and the generous outer bezel also makes this a great option for integrating into your project enclosure. The included camera module connects to your CSI port via the included ribbon cable and uses a 5MP OV5647 sensor which can shoot images up to 25921944 and videos up to 1920x1080P @30FPS (full specs below).

The display comes with fixings, ribbon cables and jumper wires.

Features:

1. 7 DSI display for Raspberry Pi
2. Supports Raspberry Pi OS driver-free
3. Compatible with Raspberry Pi boards with a DSI connector Raspberry Pi 4, 3B+, 3A+, 3
4. 800480 resolution
5. 5-point capacitive touch
6. 5MP OV5647 Camera
7. CSI interface, supports 1920x1080p@30, 1280x720p@60, 640480p@60, 640480p@90
8. I2C touch port
9. Toughened glass panel
10. Supports backlight adjustment via software
11. DSI interface, refresh rate up to 60Hz
12. Low power consumption

Useful link:

For Hardware and Software setup, please follow this tutorial.

Package Includes:

1 x 7inch DSI LCD

1 x FPC 15PIN 1.0 pitch 50mm (opposite sides)

1 x FPC 15PIN 1.0 pitch 120mm (opposite sides)

1 x 2PIN wire 10cm

1 x Screws pack
