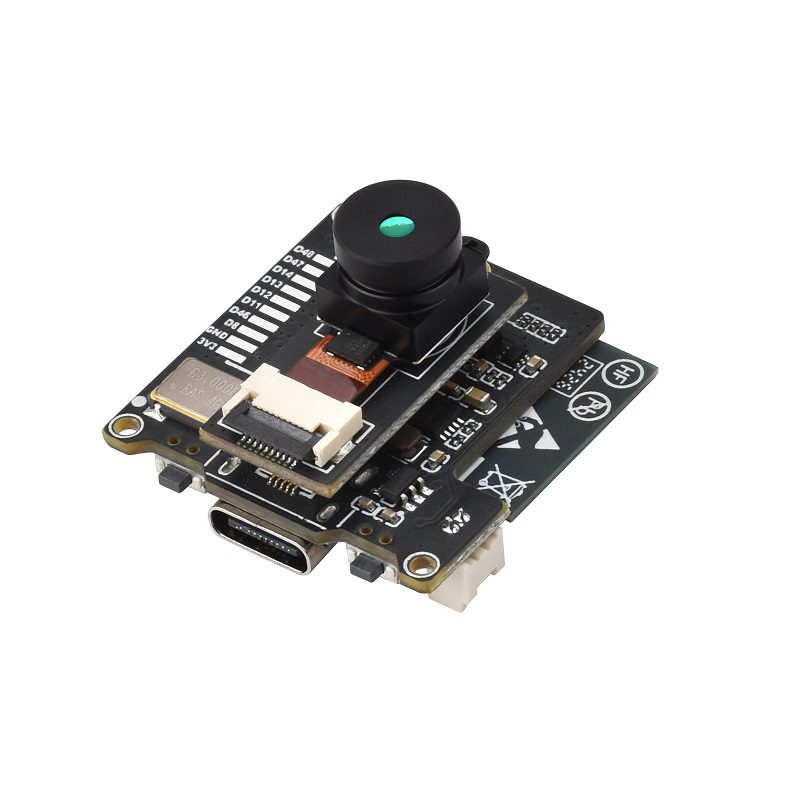

Waveshare ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels with 45° FOV

6,922.00

Added to wishlistRemoved from wishlist 0
Category:

ESP32-S3 IR Thermal Imaging Camera Module  is a wireless camera based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 8062 array pixels.

It will detect the IR radiation energy distribution of objects in the field of view of the lens in real time, and generate temperature distribution maps and thermal imaging images of the surface of the objects through quantization processing. In addition, it integrates a recharge and discharge circuit, with onboard Lithium battery header for flexible power supply..

ESP32-S3 IR Thermal Imaging Camera Module, outline dimensions


Features:

  1. Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities
  2. Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  3. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
  4. Type-C connector, enhancing device compatibility and user convenience
  5. Onboard RGB LED indicator for real-time monitoring the operating status of the module
  6. Onboard 3.7V MX1.25 Lithium battery recharge / discharge header for flexible power supply solution, extending device operation time
  7. Onboard 2 10 solder pads, including 14 GPIO, 1 I2C, and 1 UART, for external device expansion
  8. Compact size design, more space-saving, making it ideal for embedded applications.

Package Includes:

1 x Thermal-45 Camera ESP32 Module
1 x USB Type-A to Type-C cable ~1m
1 x Screws pack

Model Type: Thermal Imaging Camera
Accuracy: 2
Operating Voltage (VDC): 5V
Thermal Resolution 8062
Field of View (FOV): 56(D) 45(H) 34(V)
Refresh Rate 25 FPS
Operating Temperature (C): -4085
Shipping Weight 0.047 kg
Shipping Dimensions 10 8 3 cm
